VRAF-08xT50 Series
VRAF-08xT50 Series

VRAF-08xT50 Series

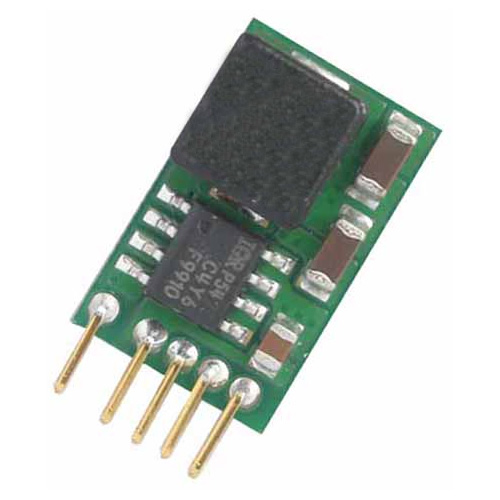

The Bel VRAF-08xT50 module is a non-isolated, step down DC-DC power converter that operates from a nominal 12 Vdc or wide range 5 Vdc to 13.8 Vdc source. This converter is designed specifically to provide bus termination voltages in applications such as DDR (double data rate) memory where the bus termination voltage must closely track the I/O bus voltage. The converter accepts a reference input and uses this to program its output voltage to 50% of the reference. The unit is packaged in compact single-in-line footprint and provides a maximum 8 A output. Standard features include remote on/off, input under-voltage lockout, output over voltage protection.
Features
  • Single
  • Type input Voltage: 12 V
Specifications
  • Power (W): 7.2
  • Input Voltage Range (VDC): 5 ~ 13.8
  • Output Voltage (VDC): 0.9
  • Operating Temperature Range (ºC): 0 ~ +70
  • Isolation (VDC): 0
  • Isolated: No
  • RoHS Compliant: Yes
