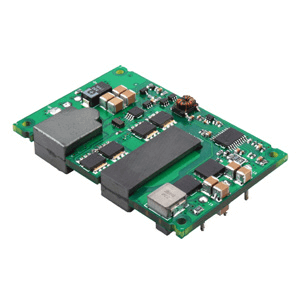

VQB125-D48-S3R3 DC-DC Converters
115.5 W DC-DC Converter, 3.3 VDC, 35 A Output, 36 ~ 75 VDC Input Range, Through Hole
Stock Check
Country - USA
Features & Specifications
| Power (W) | 115.5 |
| Input Voltage Range (VDC) | 36 ~ 75 |
| Output Voltage (VDC) | 3.3 |
| Output Current (A) | 35 |
| Number of Outputs | 1 |
| Dimensions L x W x H (mm) | 58.42 x 36.83 x 9.14 |
| Dimensions L x W x H (in) | 2.3 x 1.45 x 0.36 |
| Mounting Type | Through Hole Mount |
| Standard Footprint | 1/4 Brick |
| Features | Output Trimming (external resistance), Remote On/Off, Remote Sense |
| Options | Extended Temp Range |
| Isolation (VDC) | 1500 |
| Isolated | Yes |
| Regulation | Yes |
| RoHS Compliant | Yes |
| Brand | CUI |
