VQB100R Series

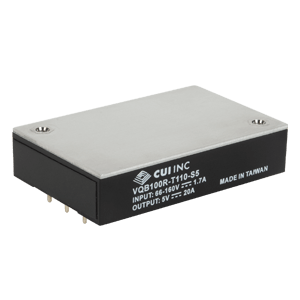

The VQB100R series is an industry standard quarter brick DC-DC converter housed in a rugged pcb mount case. Offering EN 50155 compliance and an input range of 66~160 Vdc, the VQB100R is ideally suited to address power conversion requirements in railway applications.
Features
  • 3:1 input range
  • Single regulated output
  • Designed for railway applications
  • Industry standard quarter brick package
  • Remote on/off control
  • Output trim
  • Remote Sense
  • Meets EN 50155 with external filter
  • Efficiency up to 92%
Specifications
  • Power (W): 100
  • Input Voltage Range (VDC): 66 ~ 160
  • Output Voltage (VDC): 5 ~ 24
  • Operating Temperature Range (ºC): -40 ~ +100
  • Standard Footprint: 1/4 Brick
  • Isolation (VDC): 2250
  • Isolated: Yes
  • Safety Approvals: UL/cUL
  • RoHS Compliant: Yes
