3D View

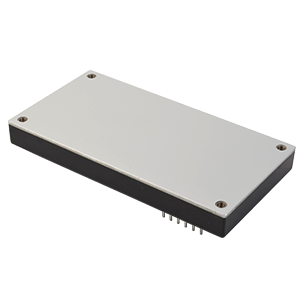

VFB400W-Q24-S24 DC-DC Converters
400 W DC-DC Converter, 24 VDC, 16.7 A Output, 9 ~ 36 VDC Input Range, Through Hole
Stock Check
Country - USA
Features & Specifications
| Power (W) | 400 |
| Input Voltage Range (VDC) | 9 ~ 36 |
| Output Voltage (VDC) | 24 |
| Output Current (A) | 16.7 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +100 |
| Dimensions L x W x H (mm) | 116.8 x 61 x 12.7 |
| Dimensions L x W x H (in) | 4.6 x 2.4 x 0.5 |
| Mounting Type | Through Hole Mount |
| Standard Footprint | Full Brick |
| Market | ITE |
| Features | Output Trimming (external resistance), Remote On/Off, Remote Sense |
| Options | Extended Temp Range |
| Isolation (VDC) | 1500 |
| Isolated | Yes |
| Regulation | Yes |
| RoHS Compliant | Yes |
| Brand | CUI |
