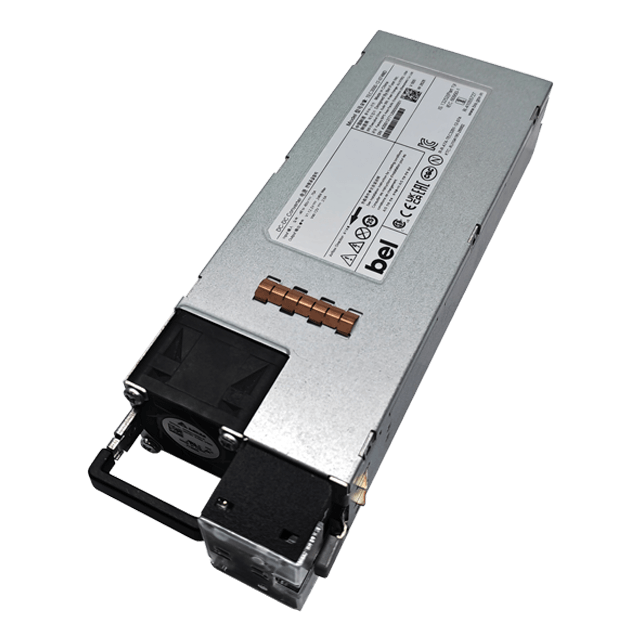

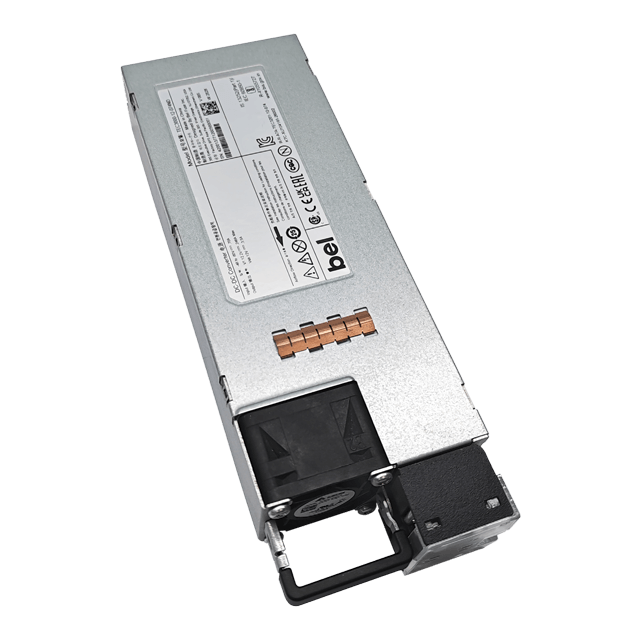

TEC3000-12-074ND DC-DC Converters
Front End DC-DC Power Supply | Power 3000 W | Output 12 VDC (12 VDC Standby), 246 A | Input -40 ~ -72 VDC | Normal Airflow
Stock Check
Country - USA
Features & Specifications
| Power (W) | 3000 |
| Input Voltage Range (VDC) | -40 ~ -72 |
| Output Voltage (VDC) | 12 |
| Output Current (A) | 246 |
| Standby Output Voltage (VDC) | 12 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -5 ~ +55 |
| Dimensions L x W x H (mm) | 185 x 73.5 x 40 |
| Dimensions L x W x H (in) | 7.28 x 2.89 x 1.57 |
| Mounting Type | Rack Mount |
| Market | Networking & Data Centers |
| Isolated | Yes |
| Airflow | Normal |
| Safety Standards | 62368 |
| Safety Approvals | BSMI, CB, CE, CQC, CSA, EAC, KCC Safety, Nemko |
| RoHS Compliant | Yes |
| Brand | Bel |
