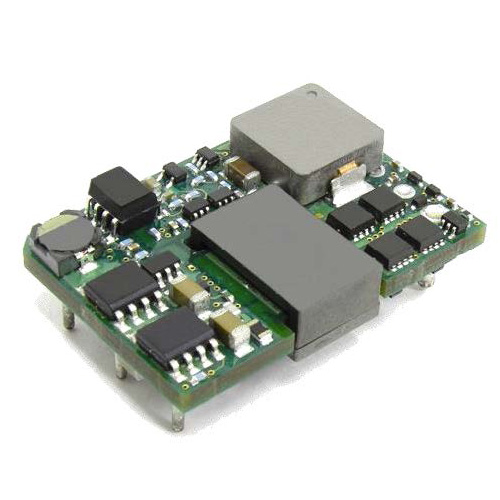

SSQE48T10033-NAC0A DC-DC Converters
Sixteenth-Brick DC-DC Converter | Power 33W | Output 3.3VDC, 10A | Input 36-75VDC | Through Hole Mount | Negative ON/OFF
Stock Check
Country - USA
Features & Specifications
| Power (W) | 33 |
| Input Voltage Range (VDC) | 36 ~ 75 |
| Output Voltage (VDC) | 3.3 |
| Output Current (A) | 10 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +85 |
| Dimensions L x W x H (mm) | 33.02 x 22.86 x 9.4 |
| Dimensions L x W x H (in) | 1.3 x 0.9 x 0.37 |
| Mounting Type | Through Hole Mount |
| Standard Footprint | 1/16 Brick |
| Market | ITE |
| Isolated | Yes |
| Active Logic | Active Low |
| Pin Length (in) | 0.11 |
| Safety Standards | 62368 |
| Safety Approvals | CB, Nemko |
| RoHS Compliant | Yes |
| Brand | Bel |
