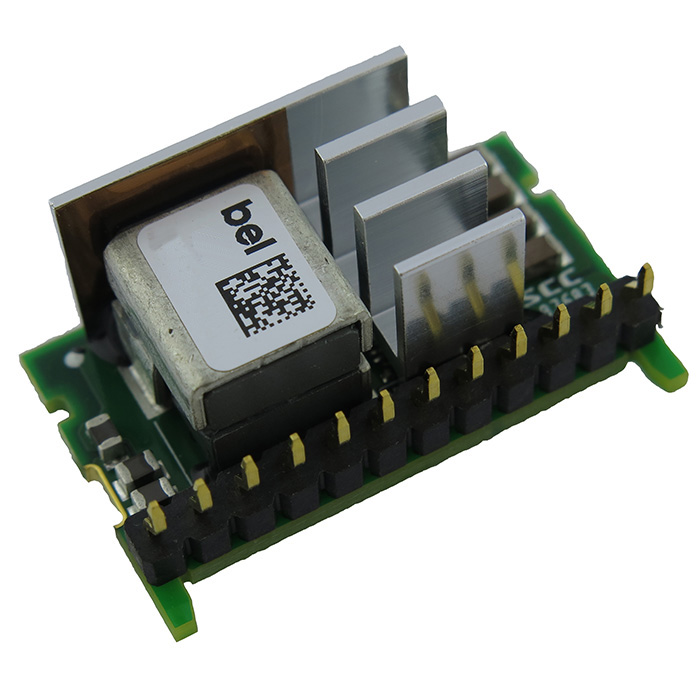

SRPE-30E1A0 DC-DC Converters
Non-Isolated DC-DC Converter (Power Module) | Power 60 W | Output 0.6 ~ 2 VDC, 30 A | Input 4.5 ~ 13.2 VDC | SMD Package | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 60 |
| Input Voltage Range (VDC) | 4.5 ~ 13.2 |
| Output Voltage (VDC) | 0.6 ~ 2 |
| Output Current (A) | 30 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | 0 ~ +50 |
| Dimensions L x W x H (mm) | 30.48 x 16.51 x 14.99 |
| Dimensions L x W x H (in) | 1.2 x 0.65 x 0.59 |
| Mounting Type | Surface Mount |
| Market | ITE |
| Isolated | No |
| Active Logic | Active High |
| Orientation | Vertical |
| Safety Approvals | UL |
| RoHS Compliant | Yes |
| Brand | Bel |
