SRPE-06E1A Series
SRPE-06E1A Series

SRPE-06E1A Series

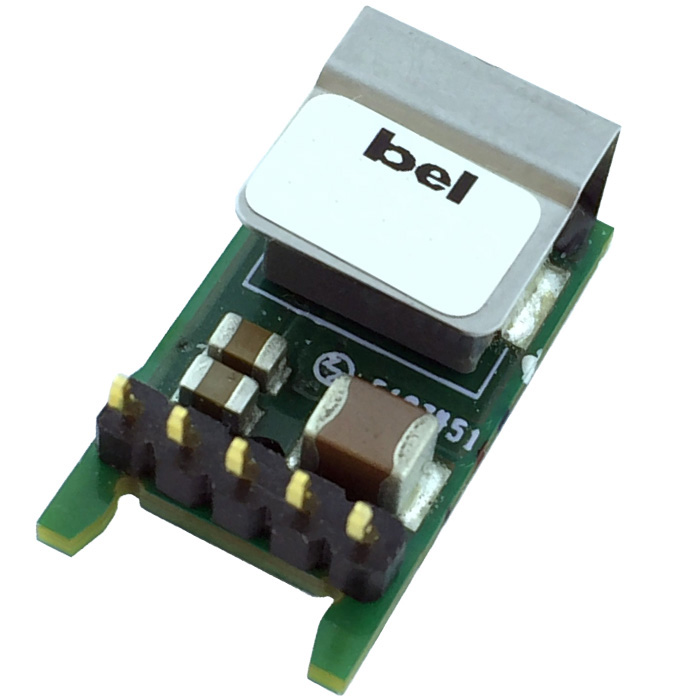

The Bel SRPE-06E1A0 is part of the non-isolated DC-DC converter Power Module series. The modules use a SIP package. These converters are available in a range of output voltages from 0.6 Vdc to 5.5 Vdc over a wide range of input voltage (VIN = 5.5 Vdc - 13.2 Vdc). The efficiency is typically 91% at 3.3 Vout (Vin = 12 Vdc) at full load.
Features
  • Output Voltage Trim
  • Single
  • Type input Voltage: 12 V
Specifications
  • Power (W): 33
  • Input Voltage Range (VDC): 5.5 ~ 13.2
  • Output Voltage (VDC): 0.6 ~ 5.5
  • Operating Temperature Range (ºC): 0 ~ +50
  • Isolation (VDC): 0
  • Isolated: No
  • Safety Approvals: UL
  • RoHS Compliant: Yes
