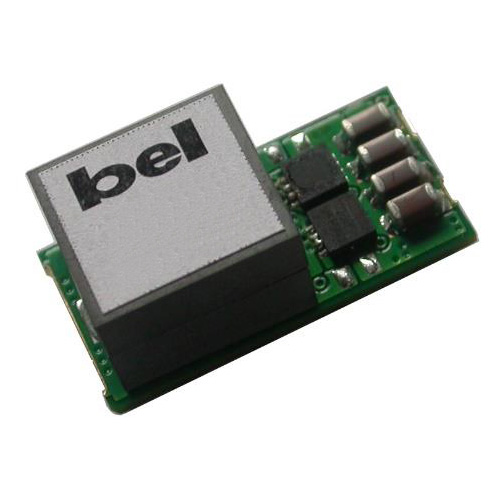

SRBL-30A1A0 DC-DC Converters
Non-Isolated DC-DC Converter (Power Block) | Power 175W | Output 0.8-5.0VDC, 35A | Input 13.2VDC | SMD Package | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 175 |
| Input Voltage Range (VDC) | 13.2 |
| Output Voltage (VDC) | 0.8 ~ 5 |
| Output Current (A) | 35 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -5 ~ +113 |
| Dimensions L x W x H (mm) | 25.4 x 12.7 x 12.19 |
| Dimensions L x W x H (in) | 1 x 0.5 x 0.48 |
| Mounting Type | Surface Mount |
| Market | ITE |
| Isolated | No |
| Active Logic | Active High |
| Orientation | Horizontal |
| Safety Approvals | UL |
| RoHS Compliant | Yes |
| Brand | Bel |
