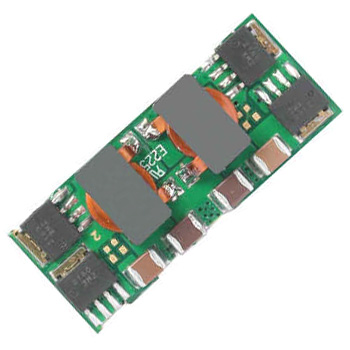

SRBC-30E2AL DC-DC Converters
Non-Isolated DC-DC Converter | Power 90W | Output 0.8-3.63VDC, 30A | Input 6-14VDC | Active Low | Surface Mount | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 90 |
| Input Voltage Range (VDC) | 6 ~ 14 |
| Output Voltage (VDC) | 0.8 ~ 3.63 |
| Output Current (A) | 30 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +85 |
| Dimensions L x W x H (mm) | 33.02 x 13.46 x 9.09 |
| Dimensions L x W x H (in) | 1.3 x 0.53 x 0.358 |
| Mounting Type | Surface Mount |
| Market | ITE |
| Isolated | No |
| Active Logic | Active Low |
| Orientation | Horizontal |
| Sequencing Option | Yes |
| Safety Approvals | UL |
| RoHS Compliant | Yes |
| Brand | Bel |
