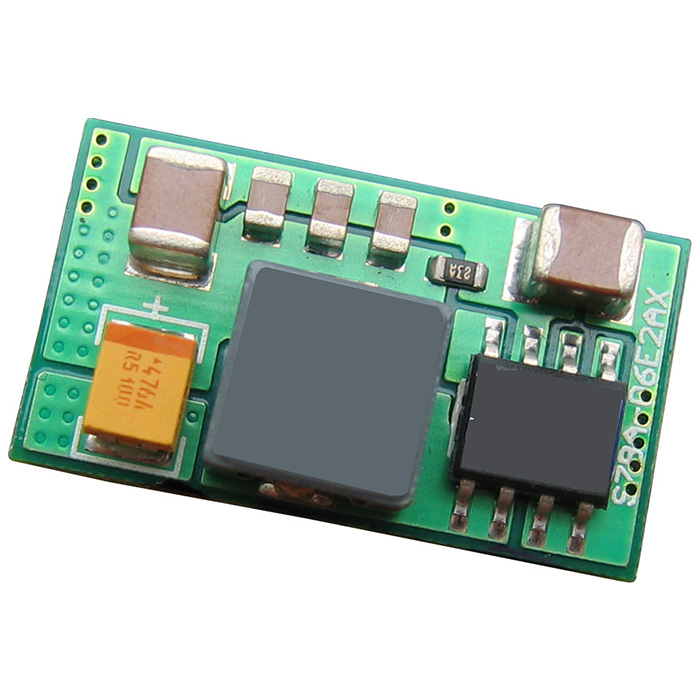

SRBA-06F1A0 DC-DC Converters
Non-Isolated DC-DC Converter | Power 20W | Output 0.75-3.63VDC, 6A | Input 2.4-5.5VDC | Active High | Surface Mount | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 20 |
| Input Voltage Range (VDC) | 2.4 ~ 5.5 |
| Output Voltage (VDC) | 0.75 ~ 3.63 |
| Output Current (A) | 6 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +85 |
| Dimensions L x W x H (mm) | 25.4 x 12.7 x 6.17 |
| Dimensions L x W x H (in) | 1 x 0.5 x 0.243 |
| Mounting Type | Surface Mount |
| Market | ITE |
| Isolated | No |
| Active Logic | Active High |
| Orientation | Horizontal |
| Sequencing Option | No |
| Safety Approvals | UL |
| RoHS Compliant | Yes |
| Brand | Bel |
