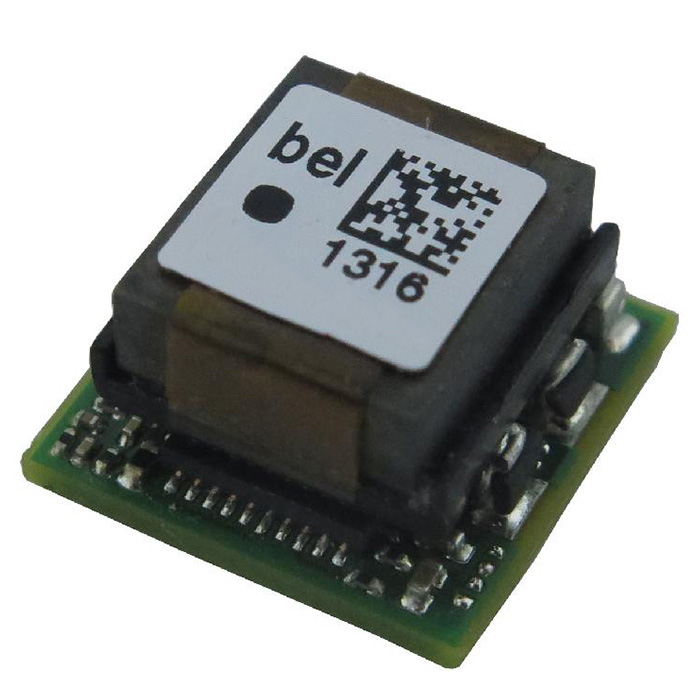

SLDN-06D1AL DC-DC Converters
Non-Isolated DC-DC Converter | Power 33W | Output 0.6-5.5VDC, 6A | Input 3-14.4VDC | Active Low | With Sequencing | Tunable Loop™ (optimize the dynamic response of the converter) | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 33 |
| Input Voltage Range (VDC) | 3 ~ 14.4 |
| Output Voltage (VDC) | 0.6 ~ 5.5 |
| Output Current (A) | 6 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +85 |
| Dimensions L x W x H (mm) | 12.19 x 12.19 x 7.37 |
| Dimensions L x W x H (in) | 0.48 x 0.48 x 0.29 |
| Mounting Type | Surface Mount |
| Market | ITE |
| Isolated | No |
| Active Logic | Active Low |
| Orientation | Horizontal |
| Sequencing Option | Yes |
| Safety Standards | 62368 |
| Safety Approvals | CB, Nemko, UL |
| RoHS Compliant | Yes |
| Brand | Bel |
