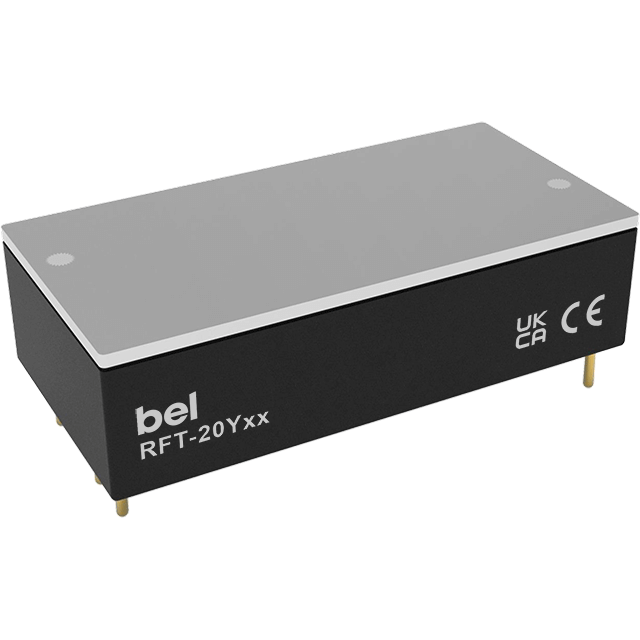

RFT-20Y12 DC-DC Converters
This product is Not Recommended for New Design (NRND) and availability is limited to remaining stock in distribution. Please contact tech support below with any questions.
Stock Check
Country - USA
Recommended Replacements for RFT-20Y12
PRFE20W-O72-S12-D
20 W DC-DC Converter, 12 VDC, 1.67 A Output, 8.5 ~ 160 VDC Input Range, Through Hole
View ProductFeatures & Specifications
| Power (W) | 20 |
| Input Voltage Range (VDC) | 14 ~ 160 |
| Output Voltage (VDC) | 12 |
| Output Current (A) | 1.67 |
| Adjustable Output Voltage (VDC) | 10.8 ~ 13.2 |
| Number of Outputs | 1 |
| Dimensions L x W x H (mm) | 50.8 x 25.4 x 11.68 |
| Dimensions L x W x H (in) | 2 x 1 x 0.46 |
| Mounting Type | Through Hole Mount |
| Market | ITE |
| Isolated | Yes |
| Active Logic | Active High |
| Safety Standards | 62368 |
| Safety Approvals | CB, CE, CSA, Nemko |
| RoHS Compliant | Yes |
| Brand | Bel |
