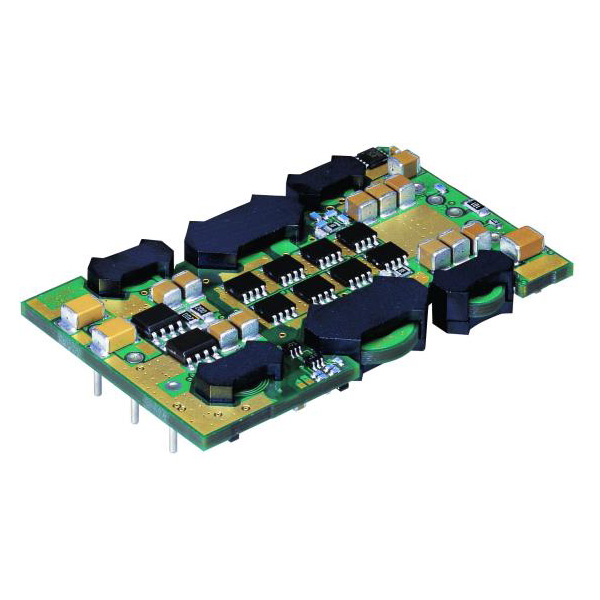

Q48T30018-NBB0G DC-DC Converters
Quarter-Brick DC-DC Converter | Power 54W | Output 1.8VDC, 30A | Input 36-75VDC | Through Hole Mount | Negative ON/OFF | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 54 |
| Input Voltage Range (VDC) | 36 ~ 75 |
| Output Voltage (VDC) | 1.8 |
| Output Current (A) | 30 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +85 |
| Dimensions L x W x H (mm) | 58.42 x 36.83 x 7.11 |
| Dimensions L x W x H (in) | 2.3 x 1.45 x 0.28 |
| Mounting Type | Through Hole Mount |
| Standard Footprint | 1/4 Brick |
| Market | ITE |
| Isolated | Yes |
| Active Logic | Active Low |
| Pin Length (in) | 0.145 |
| Safety Approvals | CSA |
| RoHS Compliant | Yes |
| Brand | Bel |
