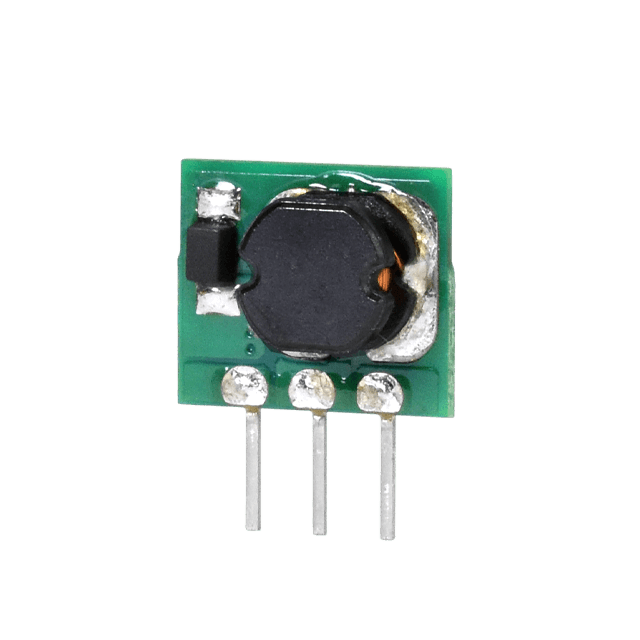

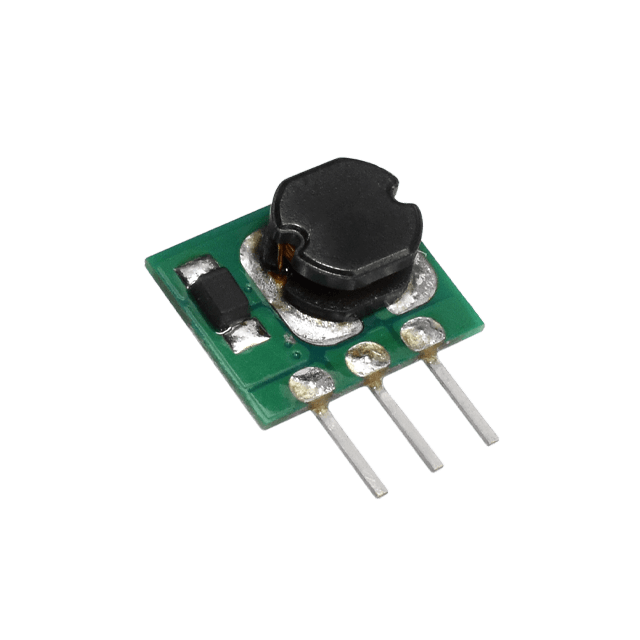

PXO7806-500-S DC-DC Converters
This product is Not Recommended for New Design (NRND) and availability is limited to remaining stock in distribution. Please contact tech support below with any questions.
Stock Check
Country - USA
Recommended Replacements for PXO7806-500-S
P7806B-500
3.25 W DC-DC Converter, 6.5 VDC, 0.5 A Output, 8 ~ 36 VDC Input Range, Through Hole
View ProductFeatures & Specifications
| Power (W) | 3.25 |
| Input Voltage Range (VDC) | 8 ~ 36 |
| Output Voltage (VDC) | 6.5/-6.5 |
| Output Current (A) | 0.5/-0.3 |
| Number of Outputs | 2 |
| Dimensions L x W x H (mm) | 10.27 x 6 x 8.61 |
| Dimensions L x W x H (in) | 0.4 x 0.24 x 0.34 |
| Mounting Type | Through Hole Mount |
| Standard Footprint | SIP3 |
| Isolation (VDC) | 0 |
| Isolated | No |
| Regulation | Yes |
| RoHS Compliant | Yes |
| Brand | CUI |
