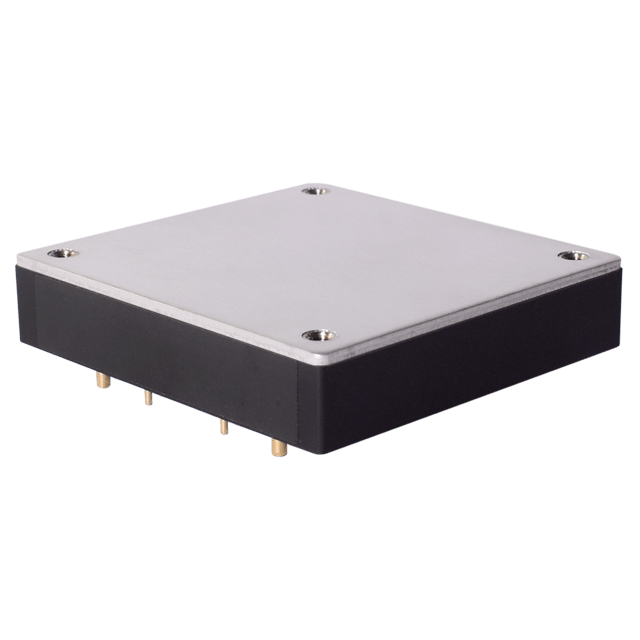

PVC300-24-S24 DC-DC Converters
300 W DC-DC Converter, 24 VDC, 12.5 A Output, 9 ~ 36 VDC Input Range, Through Hole
Stock Check
Country - USA
Features & Specifications
| Power (W) | 300 |
| Input Voltage Range (VDC) | 9 ~ 36 |
| Output Voltage (VDC) | 24 |
| Output Current (A) | 12.5 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +105 |
| Dimensions L x W x H (mm) | 57.9 x 61 x 12.7 |
| Dimensions L x W x H (in) | 2.28 x 2.402 x 0.5 |
| Mounting Type | Through Hole Mount |
| Standard Footprint | 1/2 Brick |
| Market | ITE |
| Features | Baseplate Cooling, Remote On/Off |
| Isolation (VDC) | 3000 |
| Isolated | Yes |
| Safety Standards | 62368 |
| Safety Approvals | CE, UKCA |
| Regulation | Yes |
| RoHS Compliant | Yes |
| Brand | CUI |
