3D View
PSL126-9IPCAG DC-DC Converters
DC-DC Melcher™ Positive Switching Regulator | Power 72W | Output 12VDC, 6A | Input 18-144VDC | Inhibit Input | Potentiometer | Thyristor Crowbar | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 72 |
| Input Voltage Range (VDC) | 18 ~ 144 |
| Output Voltage (VDC) | 12 |
| Output Current (A) | 6 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +71 |
| Mounting Type | Rack Mount |
| Market | ITE |
| Features | Inhibit Input, Output Voltage Adjust (via POT), Surge Suppression (Crowbar) |
| Isolated | No |
| Safety Approvals | CE, CSA |
| RoHS Compliant | Yes |
| Brand | Melcher |
Compatible Products with PSL126-9IPCAG
Accessories
HZZ00610-G
Universal mounting bracket KIT for PSL, H, M, Q, P, HP Melcher series converters. This KIT contains Universal mounting bracket XMK159-G, Aluminum, untreated, DIN-rail clamp XMM162-G, steel, galvanized and screws and washers.
View Product
Accessories
HZZ00705
Intermas System for 3 U Rack | Front Panel for PSL Series | 8 TE (40.3 mm) width
View Product
Accessories

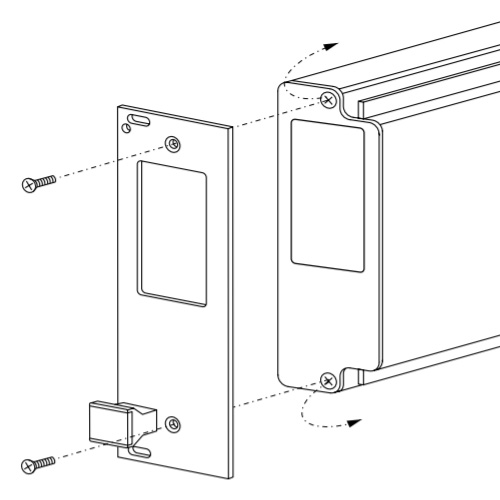

HZZ00716
Intermas System for 3 U Rack | Front Panel for PSL with option D Series | 8 TE (40.3 mm) width
View Product
Accessories
HZZ00805
Schroff System for 3 U Rack | Front Panel for PSL Series | 8 TE (40.3 mm) width
View Product
Accessories
HZZ00816
Schroff System for 3 U Rack | Front Panel for PSL with option D Series | 8 TE (40.3 mm) width
View Product
