New Product

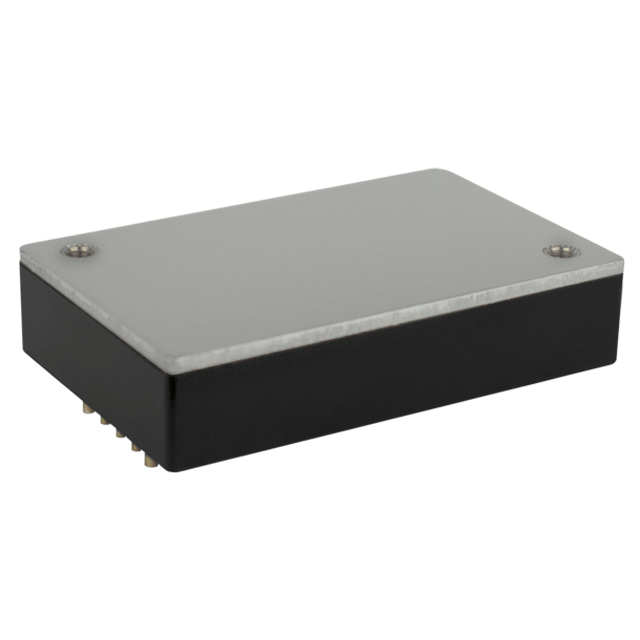

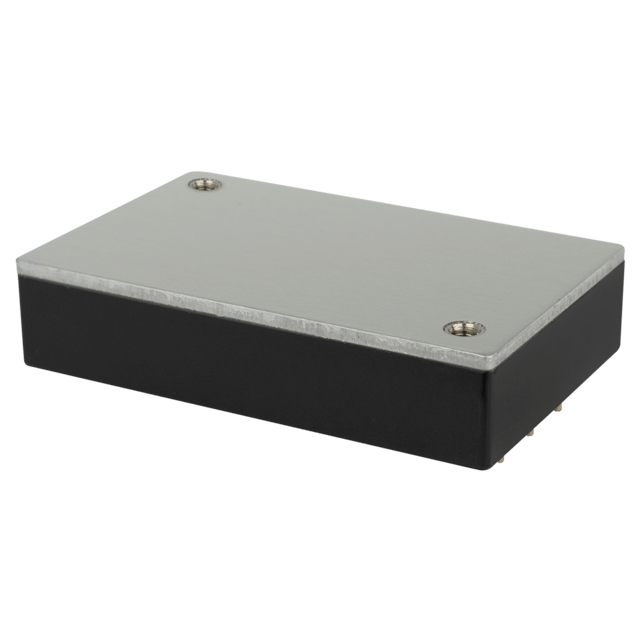

PRQ150B Series

The PRQ150B series is a 150 W DC-DC converter offering 2250 Vdc isolation and both positive and negative logic options. Housed in a 1/4 brick footprint, this series carries a temperature range of -40~105°C, making it a reliable option for ITE and industrial applications.
Features
  • 8:1 input range
  • Industry standard 1/4 brick package
  • Over temperature protection (OTP)
  • Input under voltage protection (UVLO)
  • Remote on/off control
  • Output voltage trim
  • Output remote voltage sense
  • Positive and negative logic options
  • Certified to IEC/EN 62368-1
Specifications
  • Power (W): 100 ~ 150
  • Input Voltage Range (VDC): 9 ~ 75
  • Output Voltage (VDC): 5 ~ 48
  • Operating Temperature Range (ºC): -40 ~ +105
  • Dimensions L x W x H (mm): 57.9 x 36.8 x 12.7
  • Dimensions L x W x H (in): 2.28 x 1.45 x 0.5
  • Standard Footprint: 1/4 Brick
  • Isolation (VDC): 2250
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA
  • RoHS Compliant: Yes
