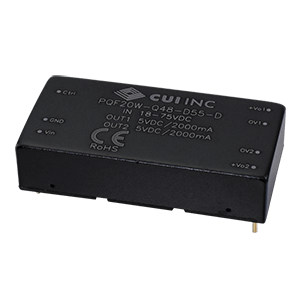

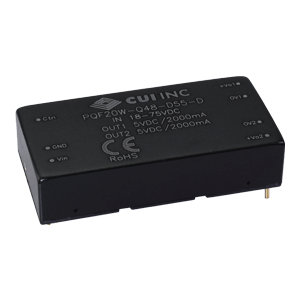

PQF20W-Q48-D55-D DC-DC Converters
This product is Not Recommended for New Design (NRND) and availability is limited to remaining stock in distribution. Please contact tech support below with any questions.
Stock Check
Country - USA
Recommended Replacements for PQF20W-Q48-D55-D
PDQ15-Q48-D5-D
15 W DC-DC Converter, 5 VDC / -5 VDC, 1.5 A / -1.5 A Output, 18 ~ 75 VDC Input Range, Through Hole
View ProductFeatures & Specifications
| Power (W) | 20 |
| Input Voltage Range (VDC) | 18 ~ 75 |
| Output Voltage (VDC) | 5/5 |
| Output Current (A) | 2/2 |
| Number of Outputs | 2 |
| Dimensions L x W x H (mm) | 50.8 x 25.4 x 11.8 |
| Dimensions L x W x H (in) | 2 x 1 x 0.465 |
| Mounting Type | Through Hole Mount |
| Standard Footprint | 2" x 1" |
| Options | Extended Temp Range |
| Isolation (VDC) | 3000 |
| Isolated | Yes |
| Safety Standards | 62368 |
| Safety Approvals | CE |
| Regulation | Yes |
| RoHS Compliant | Yes |
| Brand | CUI |
