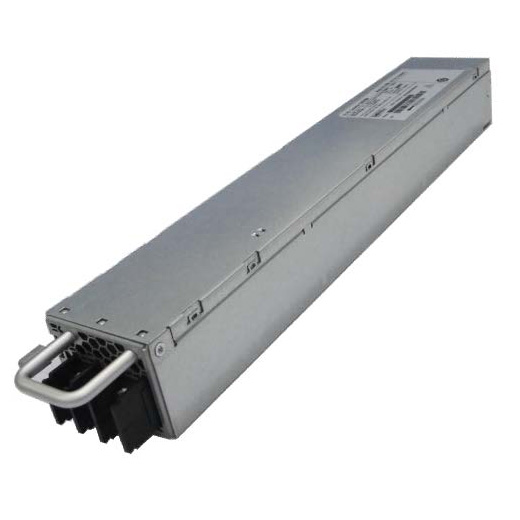

PET750 (DC-DC) Series
Specifications
- Power (W): 750
- Input Voltage Range (VDC): -40 ~ -72
- Output Voltage (VDC): 12
- Standby Output Voltage (VDC): 5
- Operating Temperature Range (ºC): 0 ~ +50
- Dimensions L x W x H (mm): 300 x 50.5 x 40
- Dimensions L x W x H (in): 11.81 x 1.99 x 1.57
- Isolated: Yes
- Safety Standards: 62368
- Safety Approvals: BSMI, CB, CCC, CE, CSA, Nemko
- RoHS Compliant: Yes
Features
- Hot-plug capable
- Parallel operation with active current sharing
- Digital controls for improved performance
- Status LED with fault signaling
- Power Management Bus communication interface for control, programming and monitoring
