Not Recommended for New Design (NRND)

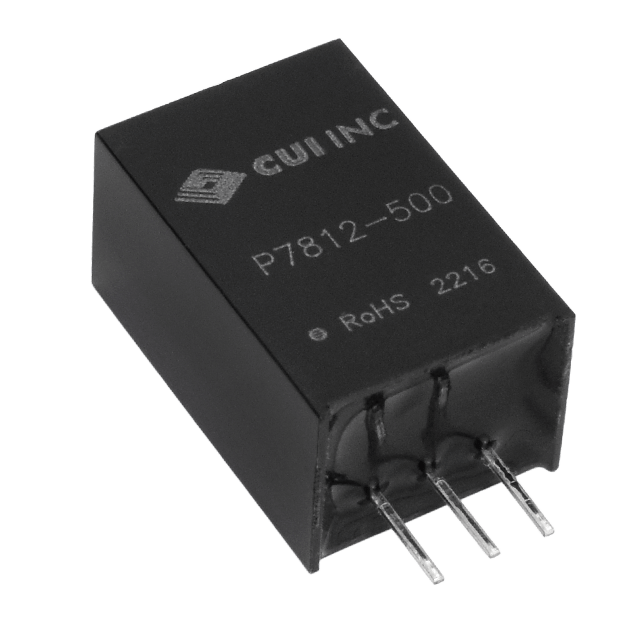

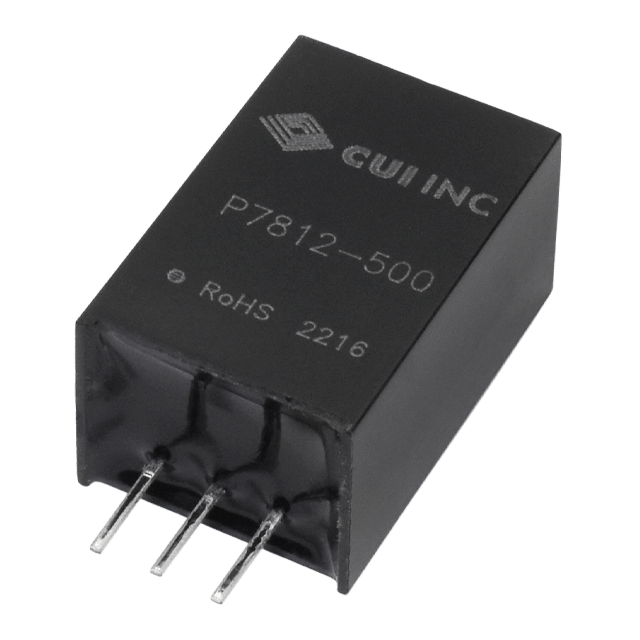

P78-500 Series

This product is Not Recommended for New Design (NRND) and availability is limited to remaining stock in distribution. Please visit the  parametric search to find available replacements.
View Recommended Replacements

Recommended Replacements

P78A-0500 Series

P78A-0500 Series

The compact P78A-0500 non-isolated DC-DC converter series has been designed to offer a high performance alternative to linear regulators. Utilizing switching technology, the series is footprint compatible with TO-220 package LM78XX model regulators. Unlike linear regulators, the P78 dc switching regulator does not require a heat sink, making it ideal for applications where board space is at a premium and energy efficiency is a concern.

View Product
Features
  • 24 V option 0.3 A
  • all others 0.5 A
  • 90 Vdc max input voltage
  • Efficiency up to 93%
  • Ultra-wide input voltage range
  • Pin compatible with LM78XX linear regulators
  • Straight and bent pin options
Specifications
  • Power (W): 1.65 ~ 7.5
  • Input Voltage Range (VDC): 9 ~ 90
  • Output Voltage (VDC): 3.3 ~ 24
  • Standard Footprint: SIP3
  • Isolation (VDC): 0
  • Isolated: No
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA
  • RoHS Compliant: Yes
