DDP2-M Series

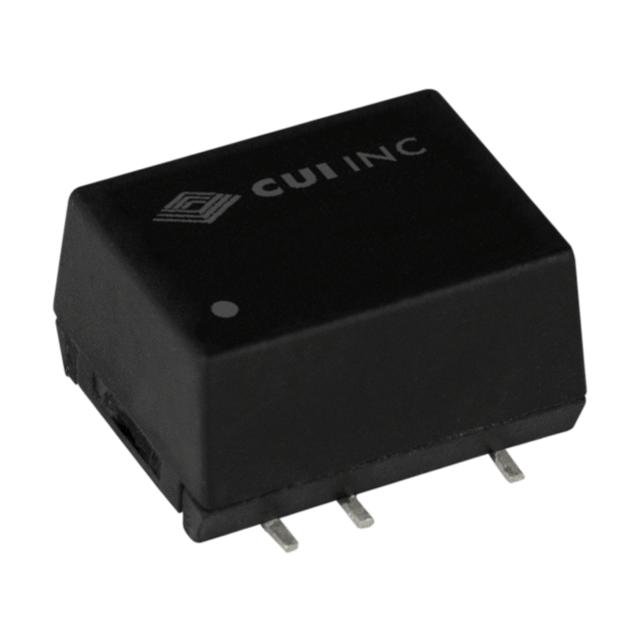

The DDP2-M series is a 2 W DC-DC converter offering 1500 Vdc isolation. Housed in a SMT8 package, this series carries a temperature range of -40~105°C, making it a reliable option for ITE applications.
Features
  • Compact SMT package
  • Single unregulated output
  • Certified to IEC/EN/UL 62368-1
  • Continuous short circuit protection (SCP)
Specifications
  • Power (W): 2
  • Input Voltage Range (VDC): 4.5 ~ 26.4
  • Output Voltage (VDC): 3.3 ~ 24
  • Operating Temperature Range (ºC): -40 ~ +105
  • Dimensions L x W x H (mm): 12.8 x 10.8 x 6.9
  • Dimensions L x W x H (in): 0.504 x 0.425 x 0.272
  • Standard Footprint: SMT8
  • Isolation (VDC): 1500
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA, UL/cUL
  • RoHS Compliant: Yes
