3D View

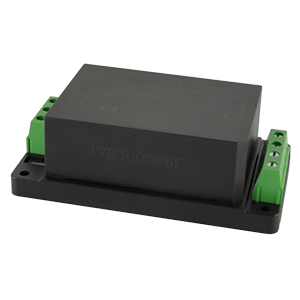

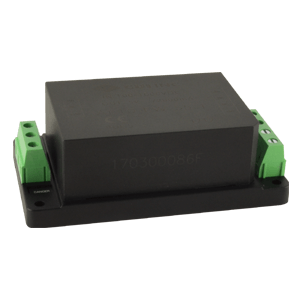

AE5-EW-S5-T DC-DC Converters
This product is Not Recommended for New Design (NRND) and availability is limited to remaining stock in distribution. Please contact tech support below with any questions.
Stock Check
Country - USA
Features & Specifications
| Power (W) | 5 |
| Input Voltage Range (VDC) | 100 ~ 1000 |
| Output Voltage (VDC) | 5 |
| Output Current (A) | 1 |
| Number of Outputs | 1 |
| Dimensions L x W x H (mm) | 96.1 x 54 x 32 |
| Dimensions L x W x H (in) | 3.783 x 2.126 x 1.26 |
| Mounting Type | Chassis Mount |
| Options | Extended Temp Range |
| Isolation (VDC) | 5600 |
| Isolated | Yes |
| Safety Standards | 62109 |
| Safety Approvals | CE |
| Regulation | Yes |
| RoHS Compliant | Yes |
| Brand | CUI |
