AE40B-UW-S28-DIN DC-DC Converters
This product is Not Recommended for New Design (NRND) and availability is limited to remaining stock in distribution. Please contact tech support below with any questions.
Stock Check
Country - USA
Features & Specifications
| Power (W) | 40 |
| Input Voltage Range (VDC) | 250 ~ 1500 |
| Output Voltage (VDC) | 28 |
| Output Current (A) | 1.43 |
| Number of Outputs | 1 |
| Dimensions L x W x H (mm) | 137 x 70 x 44 |
| Dimensions L x W x H (in) | 5.394 x 2.756 x 1.732 |

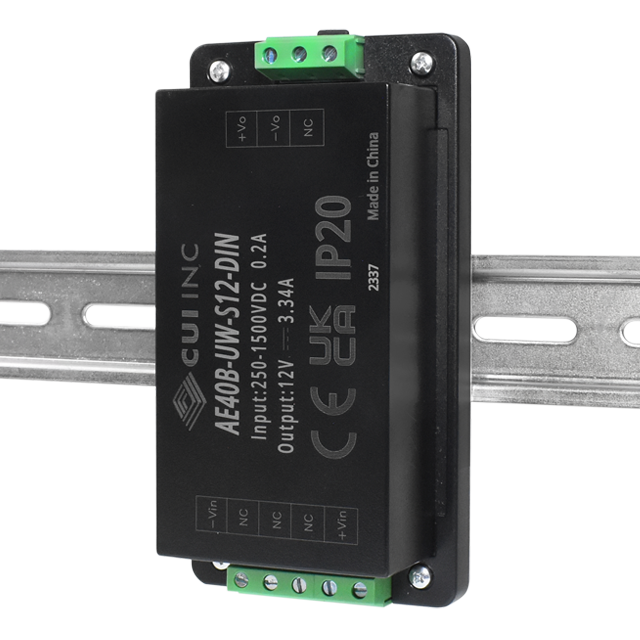

| Mounting Type | DIN Rail |
| Standard Footprint | DIP8 |
| Market | ITE |
| Isolation (VDC) | 5600 |
| Isolated | Yes |
| Safety Standards | 62109 |
| Safety Approvals | CE, UKCA |
| Regulation | Yes |
| RoHS Compliant | Yes |
| Brand | CUI |
