PET2000 (DC-DC) Series
PET2000 (DC-DC) Series

PET2000 (DC-DC) Series

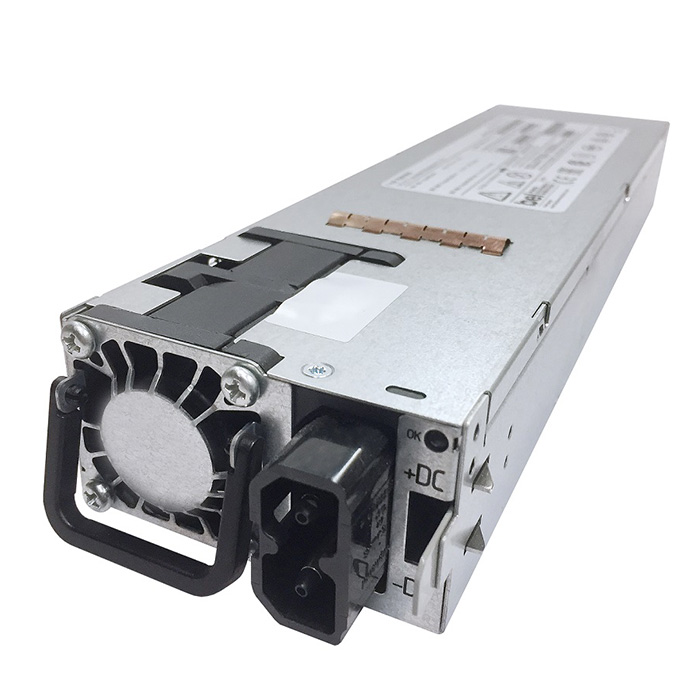

The PET2000-12-074xD is a 2000 Watt DC to DC power supply that converts 40-72 DC voltage into an isolated main output of +12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches. The PET2000-12-074xD utilizes full digital control architecture for greater efficiency, control, and functionality. This power supply meets international safety standards.
Features
  • Best-in-class, Platinum efficiency
  • Hot-plug capable
  • Parallel operation with active current sharing
  • Full digital controls for improved performance
  • Power Management Bus communication interface for control, programming and monitoring
  • Status LED with fault signaling
Specifications
  • Power (W): 2000
  • Input Voltage Range (VDC): -40 ~ -72
  • Output Voltage (VDC): 12
  • Standby Output Voltage (VDC): 12
  • Operating Temperature Range (ºC): 0 ~ +55
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CB, CE, CQC, CSA, EAC, Nemko
  • RoHS Compliant: Yes
