FND300 (DC-DC) Series

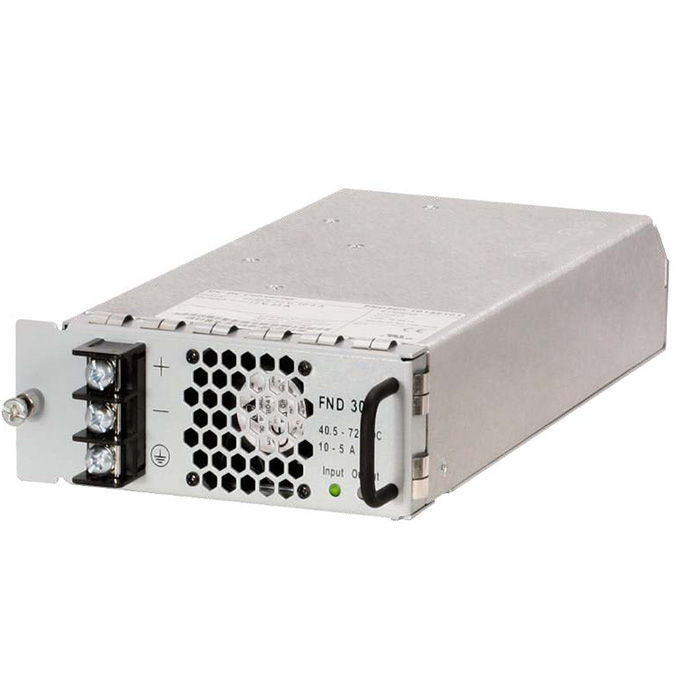

The FND300-1012G is a highly-efficient bus converter with one high current output, which can be used in a wide range of applications. Passive current share along with internal ORing diodes allow this unit to be also used in redundant, hot-swap applications. The FND300 meets international safety standards and displays the CE Mark for the Low Voltage Directive.
Features
  • Highly-efficient topology, High-density design
  • I2C interface
  • Supervisory signaling
  • Over current protection (OCP)
  • Over voltage protection (OVP)
  • Over temperature protection (OTP)
Specifications
  • Power (W): 300
  • Input Voltage Range (VDC): -40 ~ -72
  • Output Voltage (VDC): 12
  • Standby Output Voltage (VDC): 12
  • Operating Temperature Range (ºC): 0 ~ +55
  • Dimensions L x W x H (mm): 215.9 x 101.6 x 41.9
  • Dimensions L x W x H (in): 8.5 x 4 x 1.65
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CB, CE, CSA, Nemko
  • RoHS Compliant: Yes
