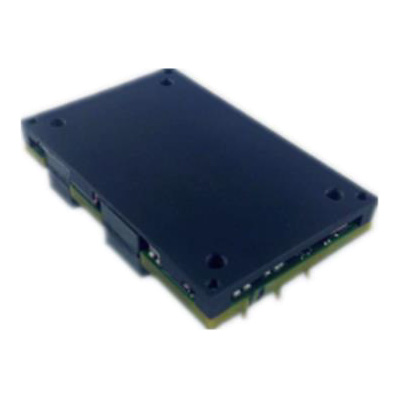

0RRQ-45M11R DC-DC Converters
Quarter-Brick DC-DC Converter | Power 480W | Output 9.7VDC, 51A | Input 51-57VDC | Active Low, with Baseplate | Through Hole Mount | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 480 |
| Input Voltage Range (VDC) | 51 ~ 57 |
| Output Voltage (VDC) | 9.7 |
| Output Current (A) | 51 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -20 ~ +70 |
| Dimensions L x W x H (mm) | 57.91 x 36.83 x 12.19 |
| Dimensions L x W x H (in) | 2.28 x 1.45 x 0.48 |
| Mounting Type | Through Hole Mount |
| Standard Footprint | 1/4 Brick |
| Market | ITE |
| Options | Baseplate |
| Isolated | Yes |
| Active Logic | Active Low |
| Safety Standards | 62368 |
| Safety Approvals | CB, UL |
| RoHS Compliant | Yes |
| Brand | Bel |
