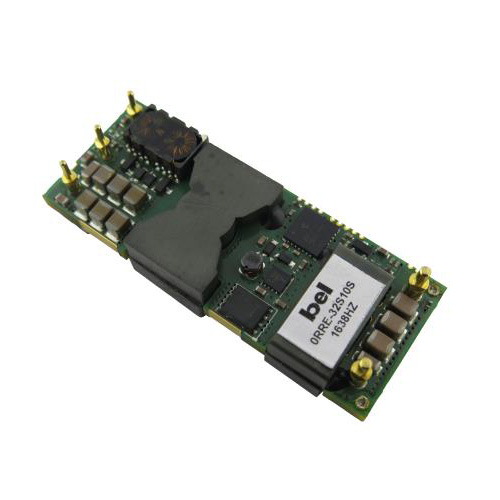

0RRE-32S10S DC-DC Converters
Eighth-Brick DC-DC Converter | Power 240W | Output 8.2VDC, 30A | Input 38-55VDC | Active Low, openframe | Through Hole Mount | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 240 |
| Input Voltage Range (VDC) | 38 ~ 55 |
| Output Voltage (VDC) | 8.2 |
| Output Current (A) | 30 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -20 ~ +70 |
| Dimensions L x W x H (mm) | 58.42 x 22.86 x 10.92 |
| Dimensions L x W x H (in) | 2.3 x 0.9 x 0.43 |
| Mounting Type | Through Hole Mount |
| Standard Footprint | 1/8 Brick |
| Market | ITE |
| Isolated | Yes |
| Active Logic | Active Low |
| Safety Standards | 62368 |
| Safety Approvals | CB, CSA, Nemko |
| RoHS Compliant | Yes |
| Brand | Bel |
