0RQP-X3S11B Series

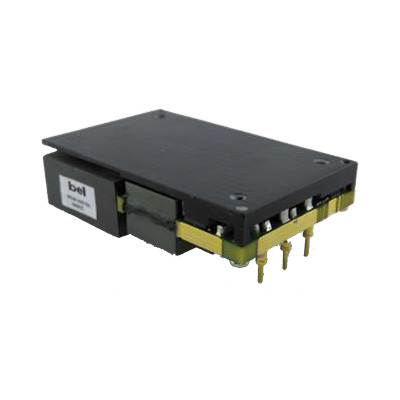

The 0RQP-X3S11B is an isolated DC-DC converter that operates from a nominal 50 VDC / 54 VDC source. This converter is intended to provide isolation and step down to generate a regulated intermediate bus for the purpose of powering non-isolated Point-of-Load (POL) converters. This unit will provide up to 1300 W of output power from a nominal 50 VDC input. The output of the converter has the droop function which allow the modules operating in parallel with high output current sharing precision. This converter is provided in a 1/4 brick package.
