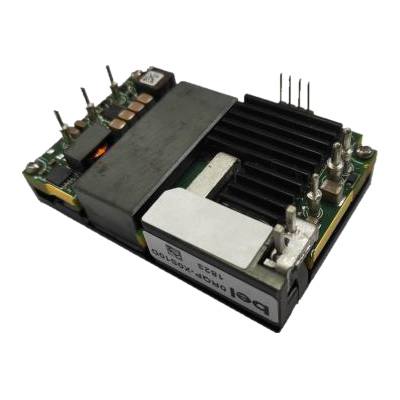

0RQP-X0S10D DC-DC Converters
Quarter-Brick DC-DC Converter | Power 1000W | Output 10.4VDC, 96.2A | Input 45-57VDC | Active Low, with Baseplate | Through Hole Mount | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 1000 |
| Input Voltage Range (VDC) | 45 ~ 57 |
| Output Voltage (VDC) | 10.4 |
| Output Current (A) | 96.2 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -5 ~ +85 |
| Dimensions L x W x H (mm) | 58.42 x 39.62 x 14.48 |
| Dimensions L x W x H (in) | 2.3 x 1.56 x 0.57 |
| Mounting Type | Through Hole Mount |
| Standard Footprint | 1/4 Brick |
| Market | ITE |
| Options | Baseplate |
| Isolated | Yes |
| Active Logic | Active Low |
| Safety Standards | 62368 |
| Safety Approvals | CB, CSA, Nemko |
| RoHS Compliant | Yes |
| Brand | Bel |
