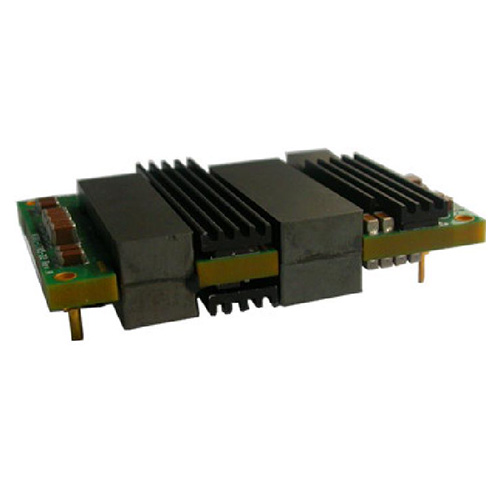

0RQB-F5S11B DC-DC Converters
Quarter-Brick DC-DC Converter | Power 550W | Output 10.6VDC, 52A | Input 38-56VDC | Active Low, with HSK plate | Through Hole Mount | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 550 |
| Input Voltage Range (VDC) | 38 ~ 56 |
| Output Voltage (VDC) | 10.6 |
| Output Current (A) | 52 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -5 ~ +85 |
| Dimensions L x W x H (mm) | 58.42 x 36.83 x 14.48 |
| Dimensions L x W x H (in) | 2.3 x 1.45 x 0.57 |
| Mounting Type | Through Hole Mount |
| Standard Footprint | 1/4 Brick |
| Market | ITE |
| Options | Heatsink |
| Isolated | Yes |
| Active Logic | Active Low |
| Safety Standards | 62368 |
| Safety Approvals | CB, UL |
| RoHS Compliant | Yes |
| Brand | Bel |
