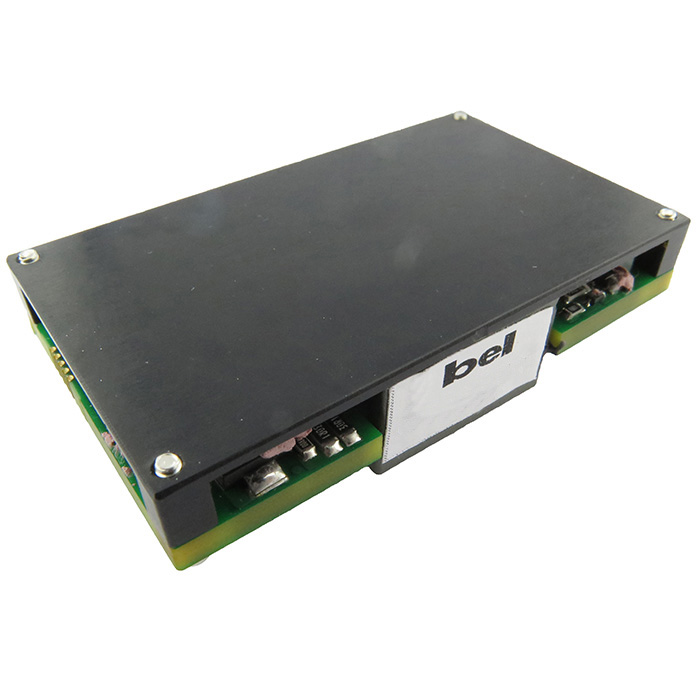

0RQB-D0W12LG DC-DC Converters
Quarter-Brick DC-DC Converter | Power 200W | Output 12VDC, 16.7A | Input 43-154 VDC | Active Low | Tray Packaging | Through Hole Mount | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 200 |
| Input Voltage Range (VDC) | 43 ~ 154 |
| Output Voltage (VDC) | 12 |
| Output Current (A) | 16.7 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +95 |
| Dimensions L x W x H (mm) | 62.23 x 36.83 x 14.99 |
| Dimensions L x W x H (in) | 2.45 x 1.45 x 0.59 |
| Mounting Type | Through Hole Mount |
| Standard Footprint | 1/4 Brick |
| Market | ITE |
| Isolated | Yes |
| Active Logic | Active Low |
| Safety Standards | 62368 |
| Safety Approvals | CB, CE, CSA, Nemko |
| RoHS Compliant | Yes |
| Brand | Bel |
