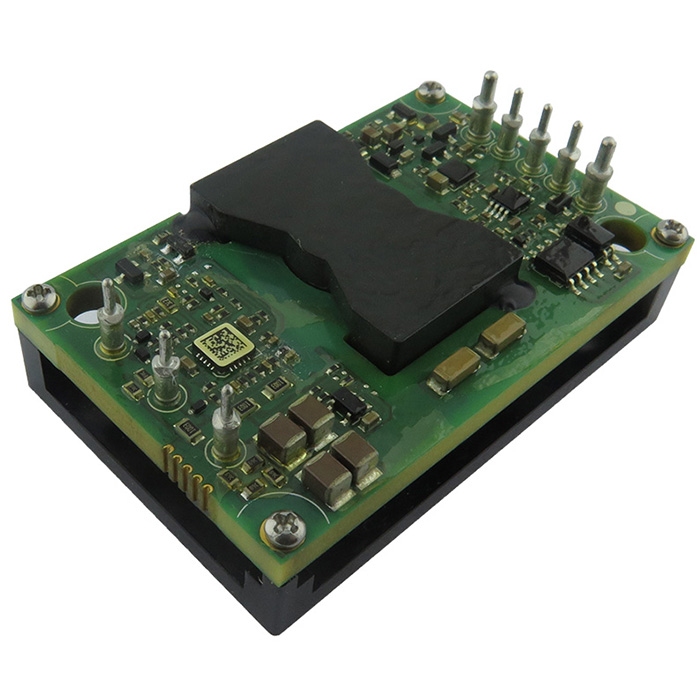

0RQ1-C5W24M DC-DC Converters
Quarter-Brick DC-DC Converter | Power 150W | Output 24VDC, 6.25A | Input 66-154VDC | Active Low, without baseplate | Through Hole Mount | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 150 |
| Input Voltage Range (VDC) | 66 ~ 154 |
| Output Voltage (VDC) | 24 |
| Output Current (A) | 6.25 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +85 |
| Dimensions L x W x H (mm) | 62.23 x 36.83 x 17.02 |
| Dimensions L x W x H (in) | 2.45 x 1.45 x 0.67 |
| Mounting Type | Through Hole Mount |
| Standard Footprint | 1/4 Brick |
| Market | ITE |
| Isolated | Yes |
| Active Logic | Active Low |
| RoHS Compliant | Yes |
| Brand | Bel |
