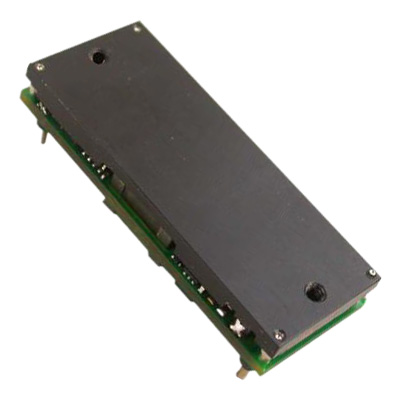

0RCY-75T15x Series

The 0RCY-75T15x is isolated DC-DC converter that operate from a wide input range (36Vdc - 75Vdc) and can cover 48Vin input range. This unit will provide up to 75W of output power. This unit is designed to be highly efficient and low cost. Features include remote on/off, over current protection, output over voltage hiccup mode, over temperature protection and undervoltage lockout. This converter is provided in an industry standard 1/8th brick package.
Features
  • I/O Isolation Voltage: 1500 V
  • Single
  • Type input Voltage: 24, 48 V
Specifications
  • Power (W): 75
  • Input Voltage Range (VDC): 36 ~ 75
  • Output Voltage (VDC): 15
  • Operating Temperature Range (ºC): -40 ~ +85
  • Dimensions L x W x H (mm): 58.42 x 22.86 x 12.19
  • Dimensions L x W x H (in): 2.3 x 0.9 x 0.48
  • Standard Footprint: 1/8 Brick
  • Isolation (VDC): 1500
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CB, CSA, Nemko
  • RoHS Compliant: Yes
