0RCY-D4T03 Series

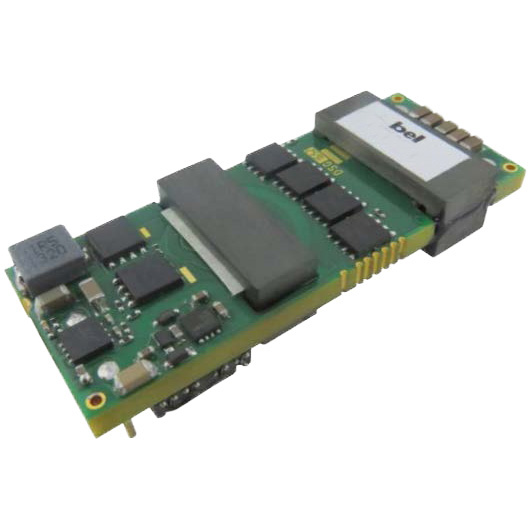

The 0RCY-D4T03x is an isolated DC-DC converter that operate from a nominal 48V source. This unit provides up to 198W of output power from a nominal 48V input. This unit is designed to be highly efficient and low cost. Features include remote on/off, short circuit protection, over current protection, undervoltage lockout and over-temperature protection. The converter is provided in an industry standard eighth brick package.
Features
  • I/O Isolation Voltage: 1500 V
  • Single
  • Type input Voltage: 48/54 V
Specifications
  • Power (W): 198
  • Input Voltage Range (VDC): 40 ~ 60
  • Output Voltage (VDC): 3.3
  • Operating Temperature Range (ºC): -40 ~ +85
  • Standard Footprint: 1/8 Brick
  • Isolation (VDC): 1500
  • Isolated: Yes
  • RoHS Compliant: Yes
