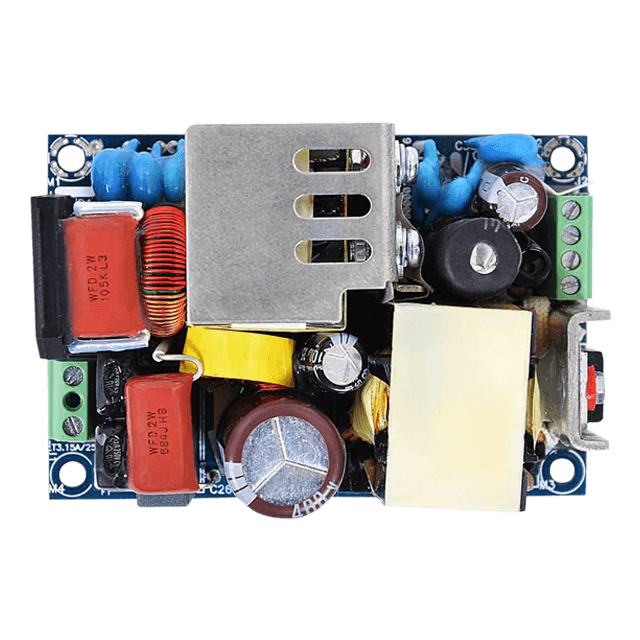

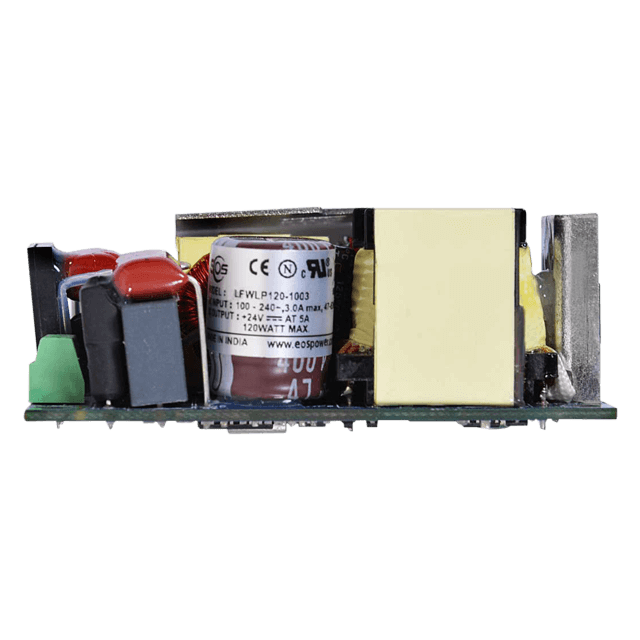

WLP120 Series

The EOS Power WLP120 Series of open frame power supplies feature a wide universal AC input range of 85 V - 264 VAC, offering 120 W of output power in a compact footprint, with a variety of isolated single output voltages. The high efficiency and high power density of the WLP120 family ensures minimal power loss in end-use equipment, thereby facilitating higher reliability, easier thermal management and meets regulatory approvals for environmentally friendly end products. WLP120 Series power supplies are ideal for telecom, datacom, industrial equipment and other applications. Made In India Image

Features

Thermal Shut-Down Feature
3.00 Million Hours, Telcordia -SR332-Issue 3
RoHS Compliant
CE Marked
Cover Kit, Base Plate, U-Channel, L-Bracket package options avaliable

Specifications

Power (W): 120
Input Voltage Range (VAC): 85 ~ 264
Output Voltage (VDC): 12 ~ 58
Operating Temperature Range (ºC): -40 ~ +70
Cooling Type: Fan
Dimensions L x W x H (mm): 76.2 x 50.8 x 29.972
Dimensions L x W x H (in): 3 x 2 x 1.18
Safety Standards: 62368
Safety Approvals: CB, CE, Nemko, UL
RoHS Compliant: Yes

Part Numbers

Technical Documents

Technical Support

Loading more products . . .

Compatible Products

Accessories

LFWLP120-CK

Cover Kit for use with WLP120, MWLP120 & WLP75, MWLP75 Series open frame power supply. Non-corrosive, easy assembly, low weight, fully safe, access for AC and DC connectors. Made In India Image

View Product
