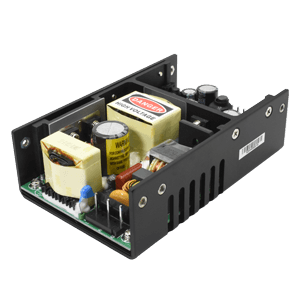

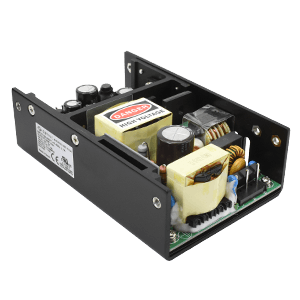

VSUU-120C-T512A AC-DC Converters
120 W AC-DC Power Supply, 5 VDC / 12 VDC / -12 VDC, 15 A / 6 A / 0.8 A Output, 90 ~ 264 VAC Input Range, U-Chassis, Chassis Mount
Stock Check
Country - USA
Features & Specifications
| Power (W) | 120 |
| Input Voltage Range (VAC) | 90 ~ 264 |
| Number of Outputs | 3 |
| Output Voltage (VDC) | 5/12/-12 |
| Output Current (A) | 15/6/0.8 |
| Operating Temperature Range (ºC) | 0 ~ +50 |
| Cooling Type | Convection |
| Dimensions L x W x H (mm) | 127 x 81.6 x 39.2 |
| Dimensions L x W x H (in) | 5 x 3.21 x 1.54 |
| Mounting Type | Chassis Mount |
| Package | U-Chassis |
| Features | Power Factor Correction (Active) |
| Market | ITE |
| Safety Standards | 62368 |
| Safety Approvals | CE, UL/cUL |
| RoHS Compliant | Yes |
| Brand | CUI |
