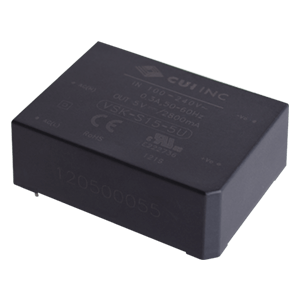

VSK-S15 Series
Recommended Replacements for VSK-S15 Series
PSK-15B Series
The PSK-15B series is a family of encapsulated AC-DC power supplies housed in a compact board mount package. Outputting 15 W of continuous power, these single output, encapsulated modules feature 4 kVac isolation and no-load power consumption less than 100 mW, making them ideal for space-constrained, low power ITE, industrial, and consumer electronic applications.
View Product
PSK-20B Series
The PSK-20B series is a family of encapsulated AC-DC power supplies housed in a compact board mount package. Outputting 20 W of continuous power, these single output, encapsulated modules feature 4 kVac isolation and no-load power consumption less than 100 mW, making them ideal for space-constrained, low power ITE, industrial, and consumer electronic applications.
View ProductSpecifications
- Power (W): 9.9 ~ 15
- Input Voltage Range (VAC): 85 ~ 264
- Output Voltage (VDC): 3.3 ~ 48
- Safety Approvals: CE, UL/cUL
- RoHS Compliant: Yes
Features
- 9 ~ 15 W
- 85 ~ 264 Vac input (universal)
- Compact board mount design
- 3 ~ 48 Vdc output options
- Low no-load power consumption
