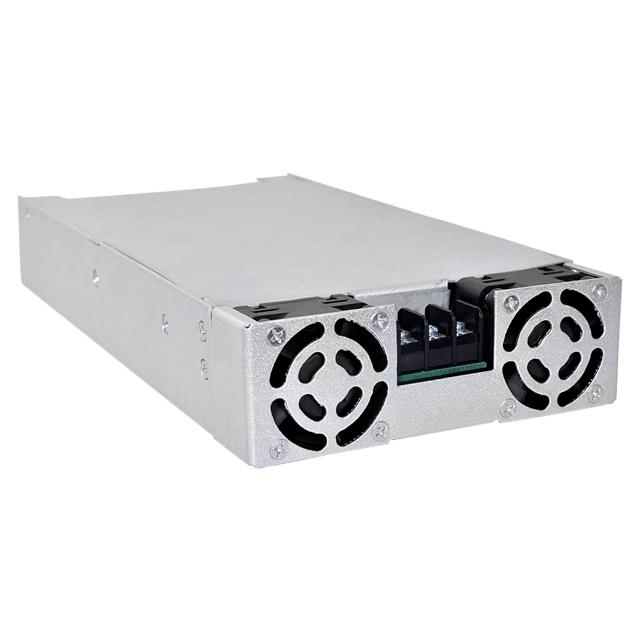

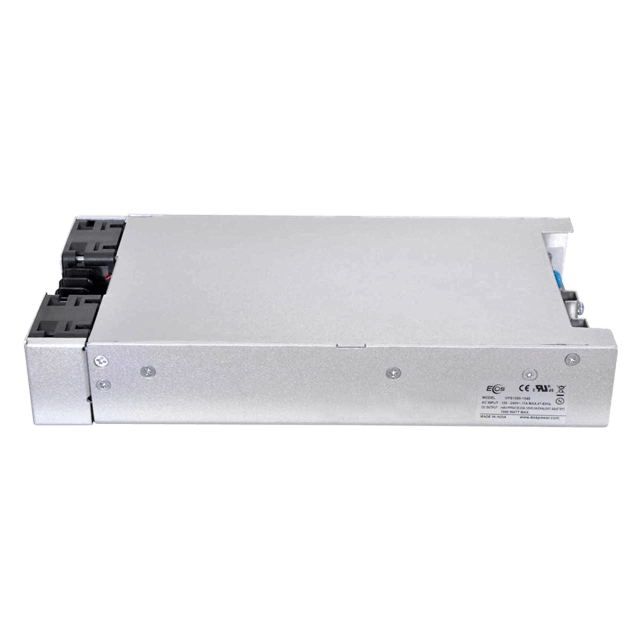

VPS1000 Series
Specifications
- Power (W): 1000
- Input Voltage Range (VAC): 85 ~ 264
- Output Voltage (VDC): 12 ~ 58
- Operating Temperature Range (ºC): -40 ~ +70
- Cooling Type: Fan
- Dimensions L x W x H (mm): 241.554 x 127 x 40.894
- Dimensions L x W x H (in): 9.51 x 5 x 1.61
- Safety Standards: 62368
- RoHS Compliant: Yes
Features
- Universal Input
- Current Sharing
- Fan Cooled
- Peak Power Capability
