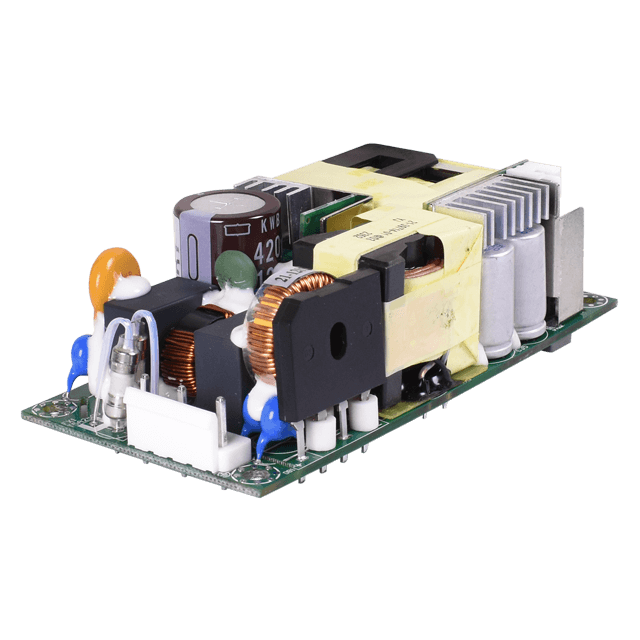

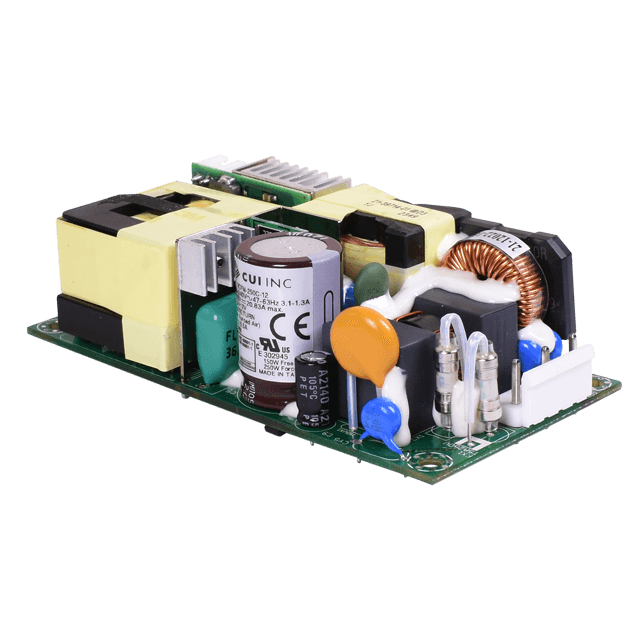

VOFM-250C-24 AC-DC Converters
250 W AC-DC Power Supply, 24 VDC, 10.4 A Output, 85 ~ 264 VAC Input Range, Open Frame, Chassis Mount, Certified to IEC 60601
Stock Check
Country - USA
Features & Specifications
| Power (W) | 250 |
| Input Voltage Range (VAC) | 85 ~ 264 |
| Number of Outputs | 1 |
| Output Voltage (VDC) | 24 |
| Output Current (A) | 10.4 |
| Operating Temperature Range (ºC) | -40 ~ +70 |
| Cooling Type | Convection, Fan |
| Dimensions L x W x H (mm) | 50.8 x 101.6 x 32.5 |
| Dimensions L x W x H (in) | 2 x 4 x 1.28 |
| Mounting Type | Chassis Mount |
| Package | Open Frame |
| Features | Power Factor Correction (Active) |
| Market | Medical |
| Safety Standards | 60601 |
| Safety Approvals | CE, UKCA, UL/cUL |
| RoHS Compliant | Yes |
| Brand | CUI |
