New Product

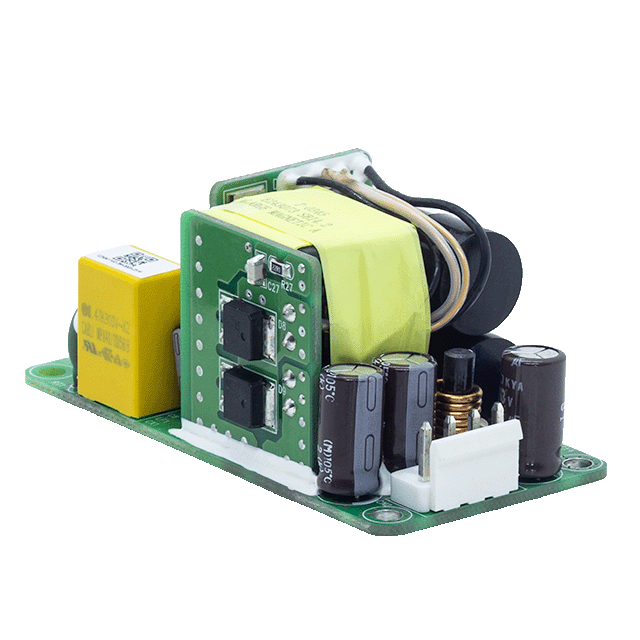

VOF-85G Series

The VOF-85G series is a family of Open Frame AC-DC power supply. Outputting 85W power, these modules feature a universal 90~264 Vac input voltage range and a wide operating temperature range of -20 ~ 70°C, making them ideal for ITE applications.
Features
  • High efficiency up to 90%
  • Low no load power consumption (<0.150 W)
  • Compact size
  • High power density (3 x 1.5 inch)
  • Certified to IEC/EN/UL 62368-1
  • Class I and Class II application
  • FCC Part 15 Class B
  • Over temperature protection (OTP)
  • Over voltage protection (OVP)
  • Over current protection (OCP)
  • Short circuit protection (SCP)
Specifications
  • Power (W): 50 ~ 85
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 5 ~ 48
  • Operating Temperature Range (ºC): -20 ~ +70
  • Cooling Type: Convection, Fan
  • RoHS Compliant: Yes
  • Dimensions L x W x H (mm): 76.2 x 38.1 x 32
  • Dimensions L x W x H (in): 3 x 1.5 x 1.26
  • Safety Standards: 62368
  • Safety Approvals: CE, UL/cUL
