VOF-80B-C Series

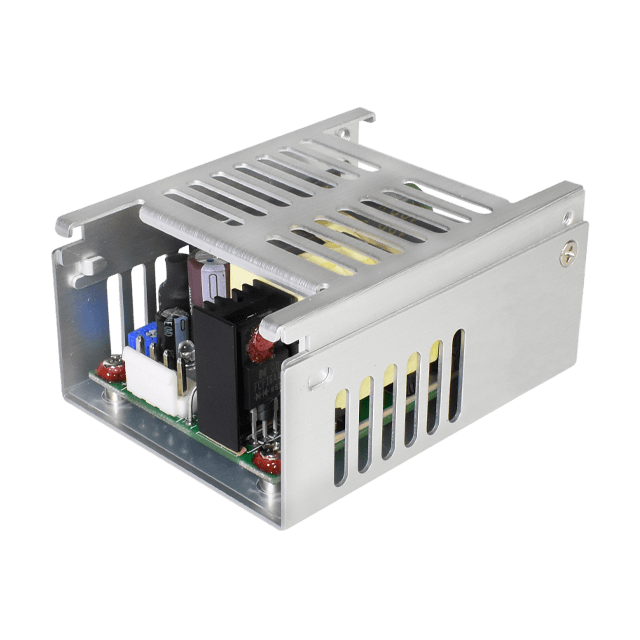

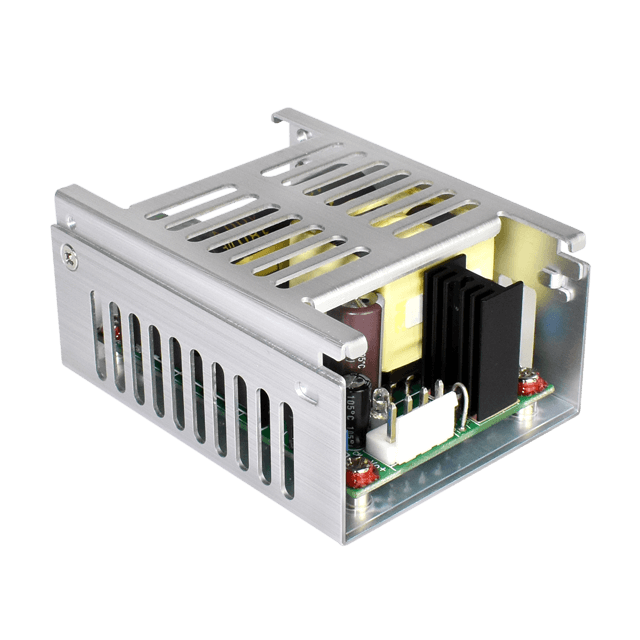

The VOF-80B-C series is a family of chassis mount AC-DC power supplies housed in a compact 2” x 3” metal case package. Certified to meet 62368-1 safety standards, these 80 W chassis mount modules feature a -30ºC ~ +80ºC temperature range, an operating altitude of 5,000 meters, high efficiency, and class I and II construction.

Features

High efficiency up to 91%
Operating altitude up to 5000m
Class I and Class II

Specifications

Power (W): 80.2 ~ 80.4
Input Voltage Range (VAC): 90 ~ 264
Output Voltage (VDC): 12 ~ 48
Operating Temperature Range (ºC): -30 ~ +80
Cooling Type: Convection
Dimensions L x W x H (mm): 81.28 x 62 x 40
Dimensions L x W x H (in): 3.2 x 2.441 x 1.575
Safety Standards: 62368
Safety Approvals: CE, UKCA, UL
RoHS Compliant: Yes

Part Numbers

Technical Documents

Technical Support
