VOF-65G Series

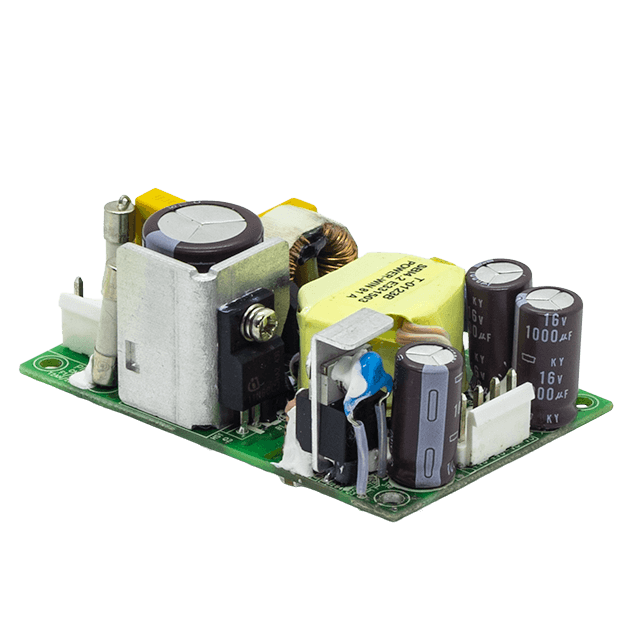

The VOF-65G series is a family of Open Frame AC-DC power supply. Outputting 65W power, these modules feature a universal 90~264 Vac input voltage range and a wide operating temperature range of -20 ~ 70°C, making them ideal for ITE applications.
Features
  • High efficiency up to 87 %
  • Compact size
  • High power density (3 x 2 x 1.18 inch)
  • Low no load power consumption (<0.21 W)
  • Class I and class II application
  • Over voltage, over temperature, over current and short-circuit protection
  • FCC Part 15 Class B
  • ITE protection (primary to secondary: reinforced; primary to earth: basic)
  • Power ON LED indicator
Specifications
  • Power (W): 40 ~ 65
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 5 ~ 56
  • Operating Temperature Range (ºC): -20 ~ +70
  • Cooling Type: Convection
  • Safety Standards: 62368
  • Safety Approvals: CE, UL/cUL
  • RoHS Compliant: Yes
