3D View

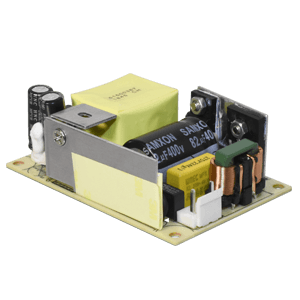

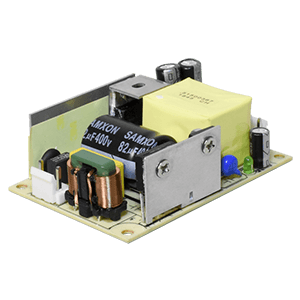

VOF-65C-S24 AC-DC Converters
This product is Not Recommended for New Design (NRND) and availability is limited to remaining stock in distribution. Please contact tech support below with any questions.
Stock Check
Country - USA
Recommended Replacements for VOF-65C-S24
VOF-70E-24
70 W AC-DC Power Supply, 24 VDC, 2.92 A Output, 85 ~ 264 VAC Input Range, Open Frame, Chassis Mount
View Product
VOF-70B-24
70 W AC-DC Power Supply, 24 VDC, 2.92 A Output, 90 ~ 264 VAC Input Range, Open Frame, Chassis Mount
View ProductFeatures & Specifications
| Power (W) | 65 |
| Input Voltage Range (VAC) | 85 ~ 264 |
| Number of Outputs | 1 |
| Output Voltage (VDC) | 24 |
| Output Current (A) | 2.71 |
| Operating Temperature Range (ºC) | -10 ~ +50 |
| Cooling Type | Convection |
| Dimensions L x W x H (mm) | 76.2 x 50.8 x 30 |
| Dimensions L x W x H (in) | 3 x 2 x 1.18 |
| Mounting Type | Chassis Mount |
| Package | Open Frame |
| Market | ITE |
| Safety Standards | 62368 |
| Safety Approvals | CE, UL/cUL |
| RoHS Compliant | Yes |
| Brand | CUI |
