VOF-300-CNF Series

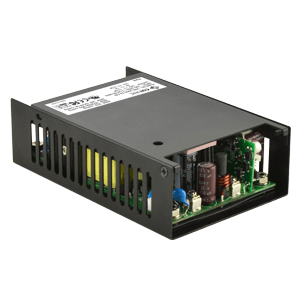

The VOF-300-CNF series is a member of CUI next-generation AC-DC power supply portfolio, delivering high efficiency and improved no-load performance in an enclosed metal case. Featuring an industry standard 3" x 5" footprint, the VOF's efficient design, compact size and rock-solid reliability make these power supplies the ideal solution for a range of consumer, industrial and ITE applications.
Features
  • Remote sense
  • Remote on/off control
  • Industry standard 3” x 5” footprint
  • Power factor correction (PFC)
  • 5 V auxiliary fan output
Specifications
  • Power (W): 300
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 12 ~ 48
  • Operating Temperature Range (ºC): -40 ~ +60
  • Cooling Type: Convection, Fan
  • Dimensions L x W x H (mm): 136 x 88 x 40.4
  • Dimensions L x W x H (in): 5.35 x 3.46 x 1.59
  • Safety Standards: 62368
  • Safety Approvals: CE, TUV, UL/cUL
  • RoHS Compliant: Yes
