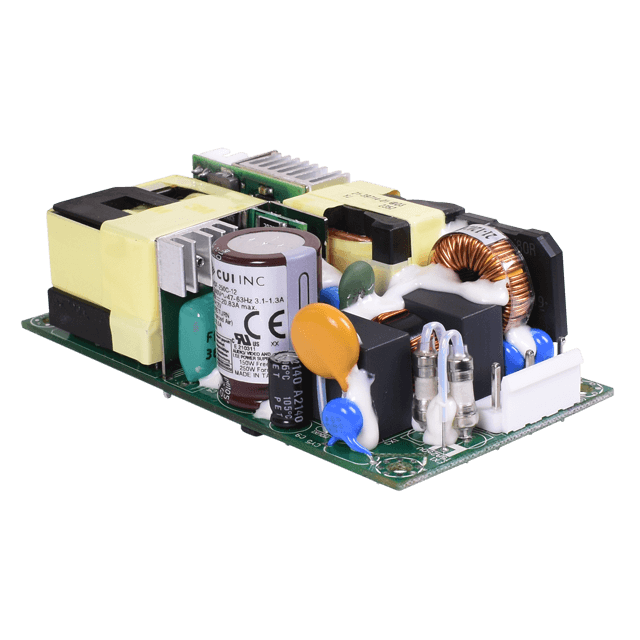

The VOF-250C series is an open-frame AC-DC power supply housed in a compact 2” x 4” chassis-mount package. These models feature a universal input voltage range, an operating altitude of up to 5,000m, and active power factor correction. The VOF's efficient performance and compact size make them ideal solutions for a range of consumer, industrial, and ICT applications.
Features
  • Safety Class I or II
  • 12 V auxiliary fan output
  • Operating altitude up to 5000m
  • 3000 Vac isolation voltage
  • 300 W peak power with 3 s duration
Specifications
  • Power (W): 250
  • Input Voltage Range (VAC): 85 ~ 264
  • Output Voltage (VDC): 12 ~ 48
  • Operating Temperature Range (ºC): -40 ~ +70
  • Cooling Type: Convection, Fan
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA, UL/cUL
  • RoHS Compliant: Yes
