VOF-200G Series

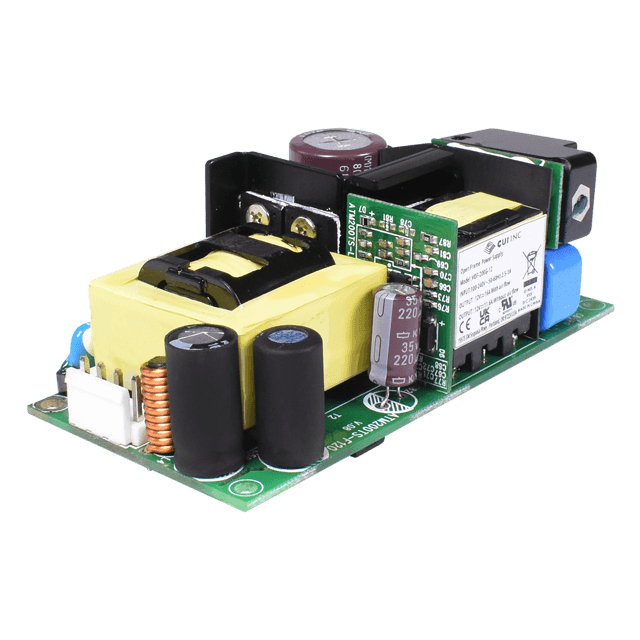

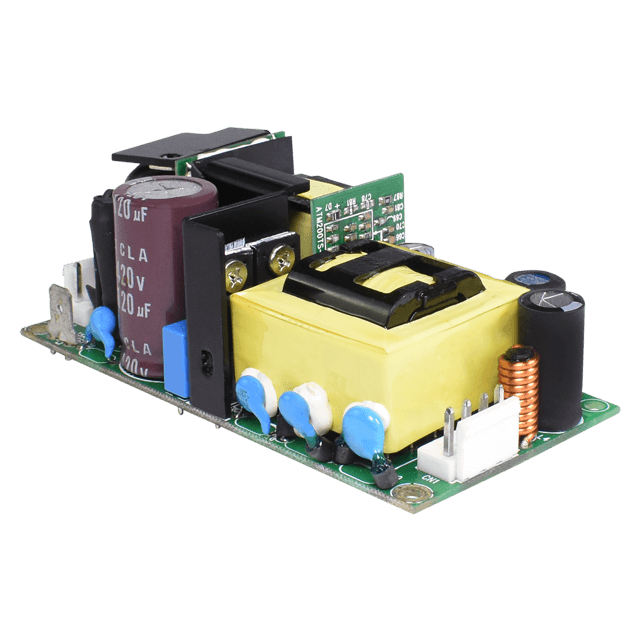

The VOF-200G series is an open-frame AC-DC power supply housed in a compact 2” x 4” chassis-mount package. These models feature a universal input voltage range, CE/FCC radiated and conducted Class B, and 200 W continuous power, with airflow. The VOF's efficient performance and compact size make them ideal solutions for a range of consumer, industrial, and ICT applications.
Features
  • CE/FCC radiated and conducted Class B
  • 200 W continuous power, with airflow
Specifications
  • Power (W): 192 ~ 201
  • Input Voltage Range (VAC): 100 ~ 240
  • Output Voltage (VDC): 12 ~ 48
  • Operating Temperature Range (ºC): -20 ~ +70
  • Cooling Type: Convection, Fan
  • Safety Standards: 62368
  • Safety Approvals: CE, UL/cUL
  • RoHS Compliant: Yes
