VOF-150G Series

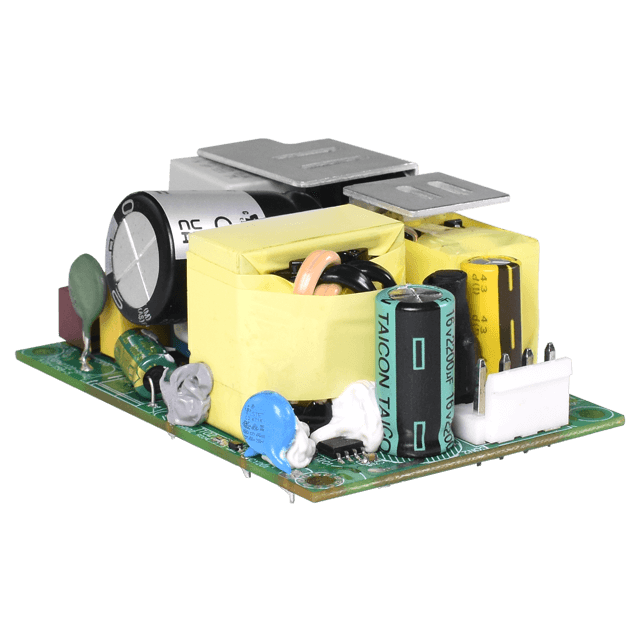

The VOF-150G series is a family of Open Frame AC-DC power supply. Outputting 114-120 W with natural convection and up to 150 W power with forced air cooling, these power supplies feature a universal 100-240 Vac input voltage range and a wide operating temperature range of -20 to 85°C, making them ideal for industrial, ITE, and medical applications.
Features
  • Designed to meet IEC/EN 60601-1
  • 2 x MOPP (designed for medical)
  • Peak load 125% for 10 seconds
  • MTBF >100,000 hours
  • Low no power consumption (<0.3W)
  • Over temperature protection (OTP)
  • Over voltage protection (OVP)
  • Over current protection (OCP)
  • Short circuit protection (SCP)
Specifications
  • Power (W): 150
  • Input Voltage Range (VAC): 100 ~ 240
  • Output Voltage (VDC): 12 ~ 48
  • Operating Temperature Range (ºC): -20 ~ +85
  • Cooling Type: Convection, Fan
  • Dimensions L x W x H (mm): 76.2 x 50.8 x 28.5
  • Dimensions L x W x H (in): 3 x 2 x 1.1
  • Safety Standards: 62368
  • Safety Approvals: CE, UL/cUL
  • RoHS Compliant: Yes
