VOF-150E Series
VOF-150E Series
VOF-150E Series
New Product

VOF-150E Series

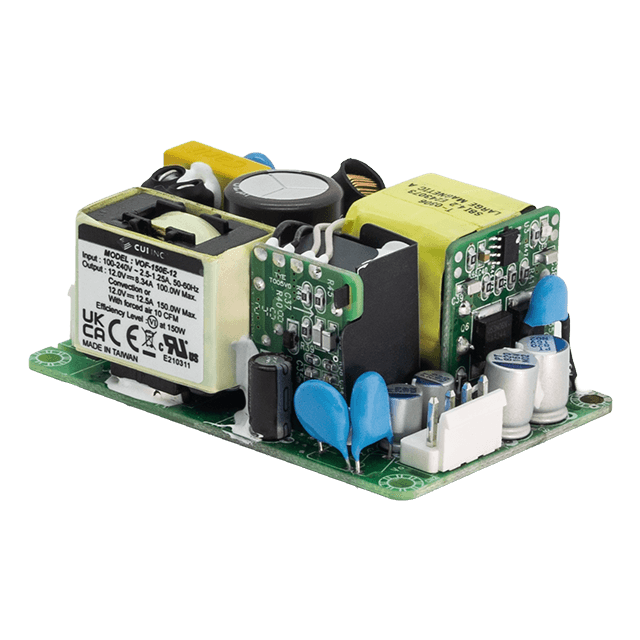

The VOF-150E series is a family of Open Frame AC-DC power supply. Outputting 150W power, these modules feature a universal 90-264 Vac input voltage range and a wide operating temperature range of -20 to 70°C, making them ideal for ITE applications.
Features
  • 3”x2” compact size, industrial design
  • Low no load power consumption (<0.150 W)
  • Main output power ON LED indicators
  • Short-circuit protection, over power protection, overvoltage protection
Specifications
  • Power (W): 150
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 12 ~ 54
  • Operating Temperature Range (ºC): -20 ~ +70
  • Dimensions L x W x H (mm): 76.2 x 50.8 x 31
  • Dimensions L x W x H (in): 3 x 2 x 1.22
  • Cooling Type: Convection, Fan
  • Safety Standards: 62368
  • Safety Approvals: CE, UL/cUL
  • RoHS Compliant: Yes
