VOF-150D Series

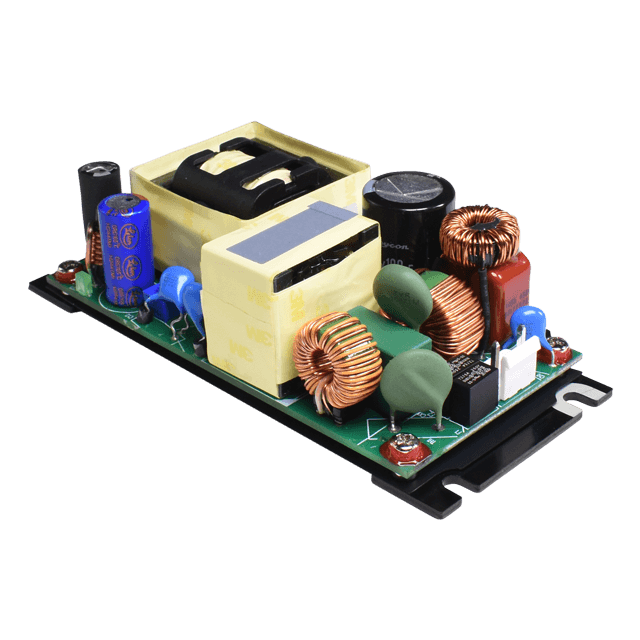

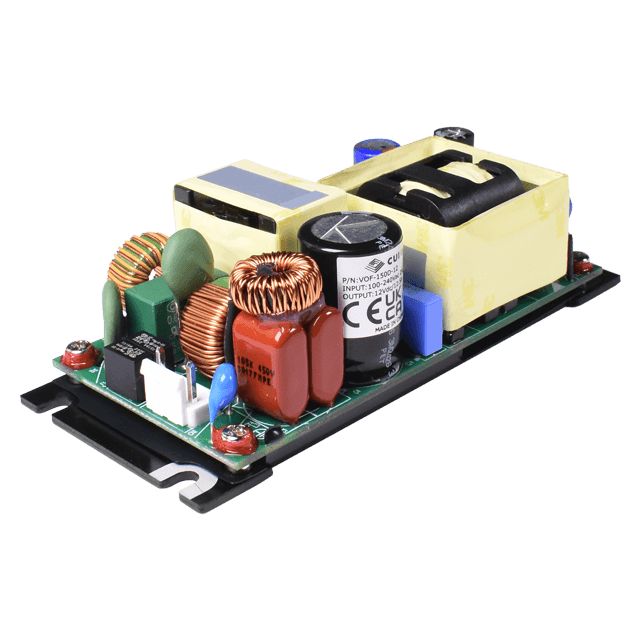

The VOF-150D series is a compact, open frame AC-DC power supply outputting 150 W of power and delivering adjustable output voltage. Packaged in a low profile, industry standard 2" x 4" footprint, these power supplies are ideal for space-constrained industrial, telecom, and IT equipment applications.
Features
  • 180 W peak power for 5 seconds, 10% duty cycle
  • 2” x 4” footprint
  • Safety Class I or II
  • Certified to EN/IEC/UL 62368-1
  • Class A/B conducted and radiated emissions
  • 5000 meter operating altitude
  • Over current protection (OCP)
  • Short circuit protection (SCP)
  • Over voltage protection (OVP)
Specifications
  • Power (W): 150
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 12 ~ 48
  • Operating Temperature Range (ºC): -40 ~ +80
  • Cooling Type: Baseplate
  • Dimensions L x W x H (mm): 482 x 670 x 110
  • Dimensions L x W x H (in): 4.6 x 2 x 1.36
  • Safety Approvals: CE, UKCA, UL/cUL
  • RoHS Compliant: Yes
